THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
CPU hỗ trợ	Intel
Chipset	B760
RAM hỗ trợ	Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợ	Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper

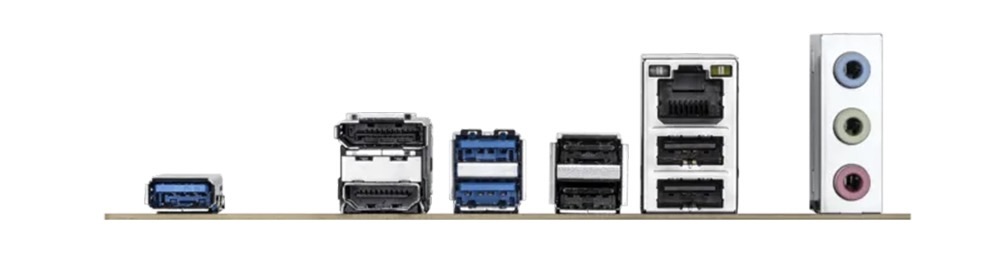

Cổng kết nối (Back Panel)	1 x DisplayPort (Note) 1 x HDMI port (Note) 3 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Kích cỡ	Micro ATX Form Factor; 24.4cm x 22.0cm

XEM THÊM THÔNG SỐ

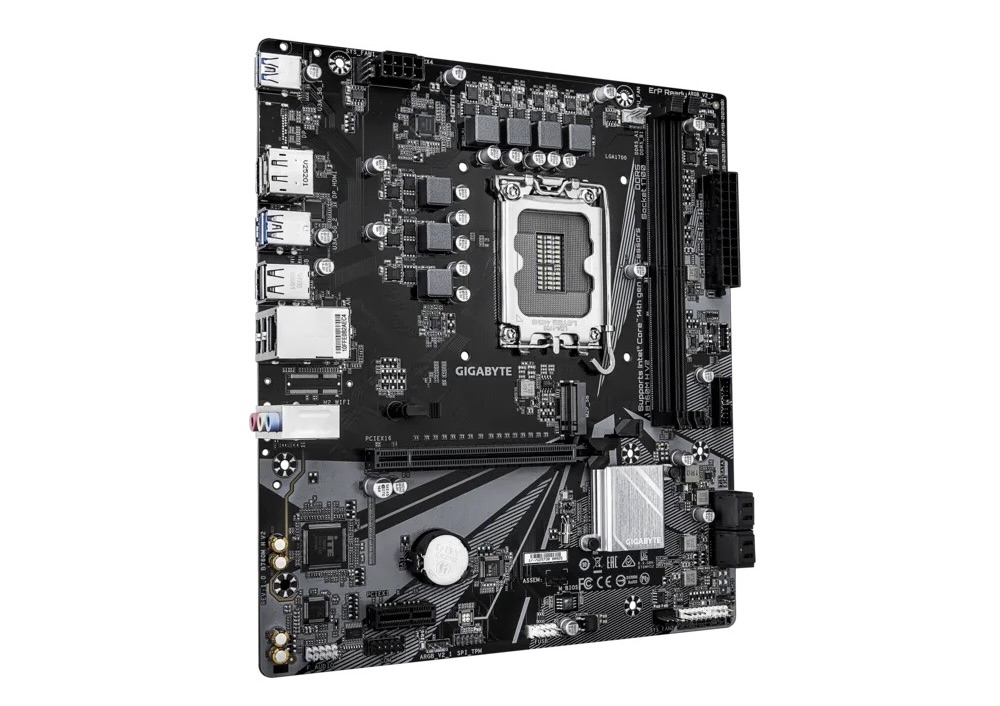

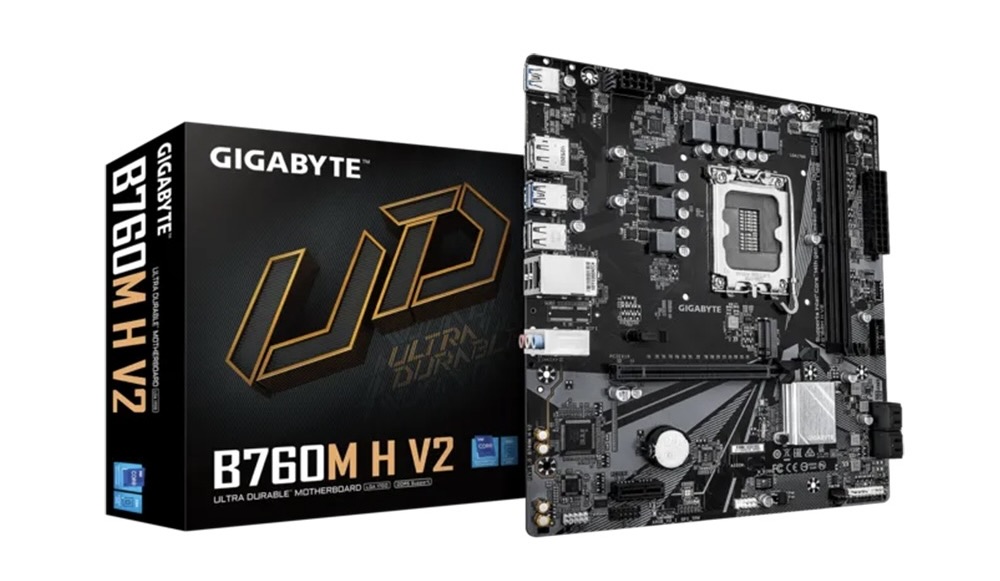

Mainboard Gigabyte B760M H V2 DDR5

Name: Mainboard Gigabyte B760M H V2 DDR5
Brand: Gigabyte
SKU: MAGI0471
Price: 2649000 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAGI0471 0 đánh giá Lượt xem: 3 So sánh

Socket: LGA1700 hỗ trợ CPU intel 14th, 13th, and 12th Generation Kích thước: Micro ATX Khe cắm RAM: 2 khe (Tối đa 128 GB) Khe cắm mở rộng: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Xem thêm >

Giá niêm yết:	~~4.999.000 đ~~
Giá khuyến mại:	2.649.000 đ [Giá đã có VAT]
	🎁Từ 01/01 đến 31/01/2025 quét QR Code thanh toán giảm ngay tới 1.000.000đ Xem chi tiết
