Phóng to Hình sản phẩm

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	MSI
Model	X870E GAMING PLUS WIFI
CPU hỗ trợ	AMD
Chipset	AMD X870E
RAM hỗ trợ	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s
Khe cắm mở rộng	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Ổ cứng hỗ trợ	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
Cổng kết nối (Internal)	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

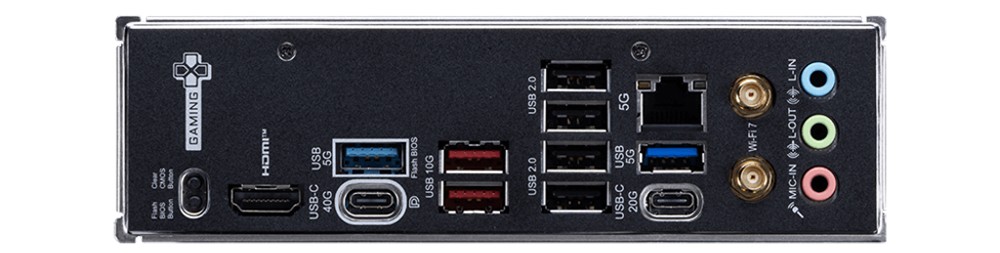

BACK PANEL	Clear CMOS Button USB 5Gbps Type-A USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 2.0 USB 20Gbps Type-C USB 5Gbps Type-A
LAN / Wireless	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4**, MLO, 4KQAM Realtek^® 8126VB 5G LAN
Kích cỡ	ATX 243.84mmx304.8mm

XEM THÊM THÔNG SỐ

Mainboard MSI X870E Gaming Plus Wifi DDR5

Name: Mainboard MSI X870E Gaming Plus Wifi DDR5
Brand: MSI
SKU: MAMS0359
Price: 8399000 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAMS0359 0 đánh giá Lượt xem: 20 So sánh

Socket: Socket AM5 Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Kích thước: ATX Khe cắm RAM: 4 khe (Tối đa 256GB) Khe cắm mở rộng: 3x PCI-E x16 slot, 1x PCI-E x1 slot

Xem thêm >

Giá niêm yết:	~~9.999.000 đ~~
Giá khuyến mại:	8.399.000 đ [Giá đã có VAT]
	🎁Từ 01/01 đến 31/01/2026 quét QR Code thanh toán giảm ngay tới 1.000.000đ Xem chi tiết
	🎁Chốt đơn ngay - Hồng bao trao tay: Từ 10/01 đến 16/02/2026 tặng 01 bao lì xì may mắn (PKKH1364) cho toàn bộ đơn hàng Xem chi tiết
