THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
CPU hỗ trợ	AMD
Chipset	AMD B650
RAM hỗ trợ	Support for DDR5 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Khe cắm mở rộng	1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợ	1 x M.2 connector, integrated in the CPU, supporting Socket 3,M key,type 2580/2280 SSDs: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs Chipset: - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper 1 x Trusted PlatformModule header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

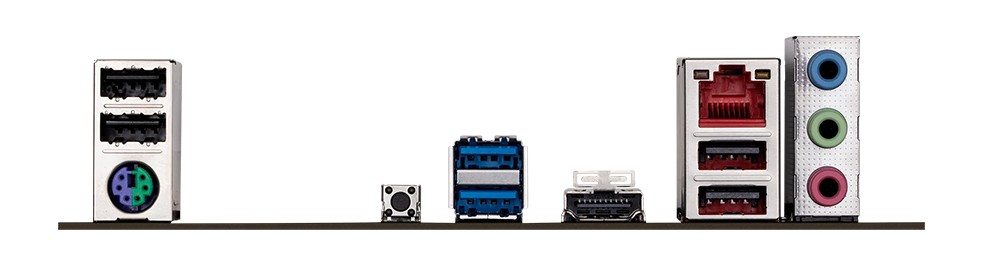

Cổng kết nối (Back Panel)	4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ	Micro ATX Form Factor; 24.0cm x 22.5cm

XEM THÊM THÔNG SỐ

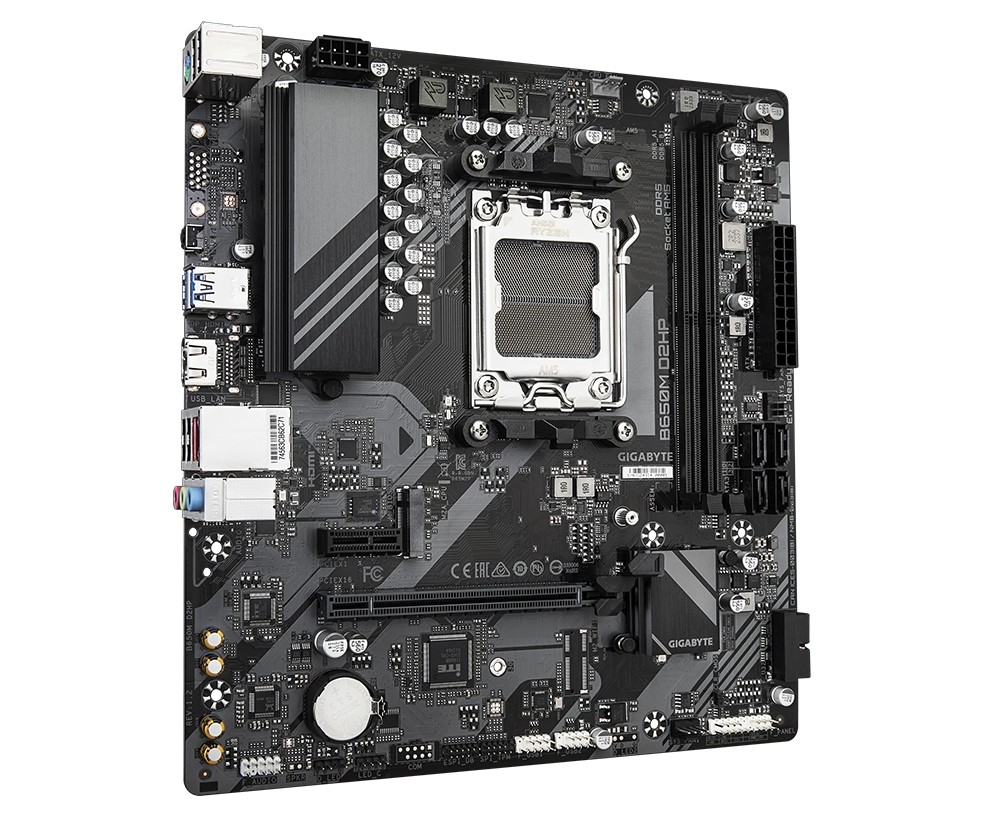

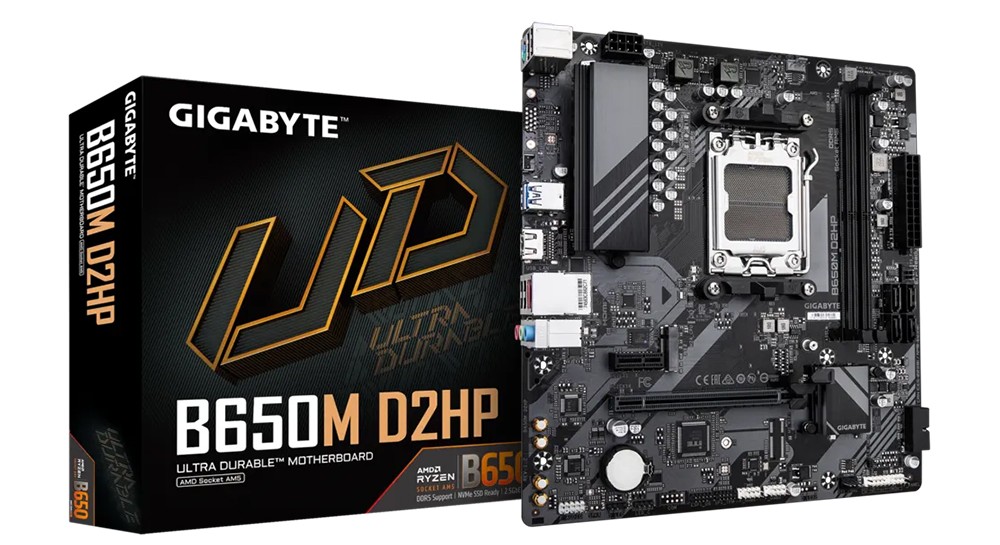

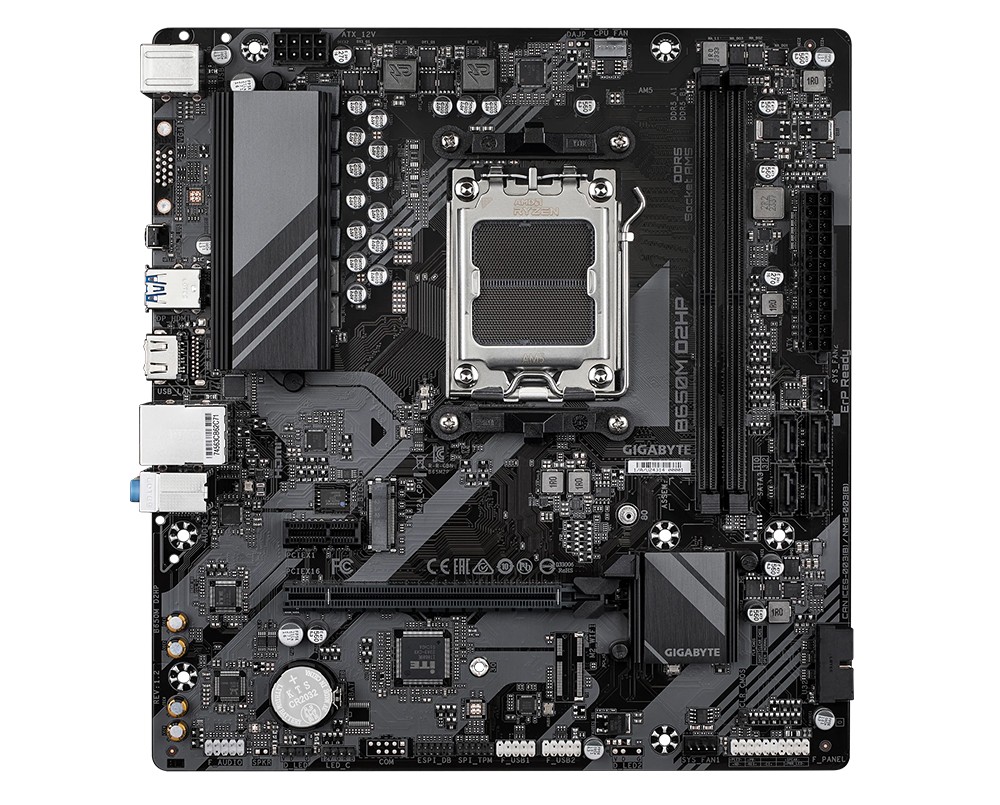

Mainboard Gigabyte B650M D2HP DDR5

Name: Mainboard Gigabyte B650M D2HP DDR5
Brand: Gigabyte
SKU: MAGI0468
Price: 2849000 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAGI0468 0 đánh giá Lượt xem: 16 So sánh

Socket: AM5 hỗ trợ AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors Kích thước: Micro ATX Khe cắm RAM: 2 khe (Tối đa 128 GB) Khe cắm mở rộng: 1 x PCI Express x16 slot, integrated in the CPU, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Xem thêm >

Giá niêm yết:	~~3.299.000 đ~~
Giá khuyến mại:	2.849.000 đ [Giá đã có VAT]
