THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	B550M-A
CPU hỗ trợ	AMD
Chipset	B550
RAM hỗ trợ	4 x DDR4 DIMM Slots ( 128GB )
Khe cắm mở rộng	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1 slots
Ổ cứng hỗ trợ	AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

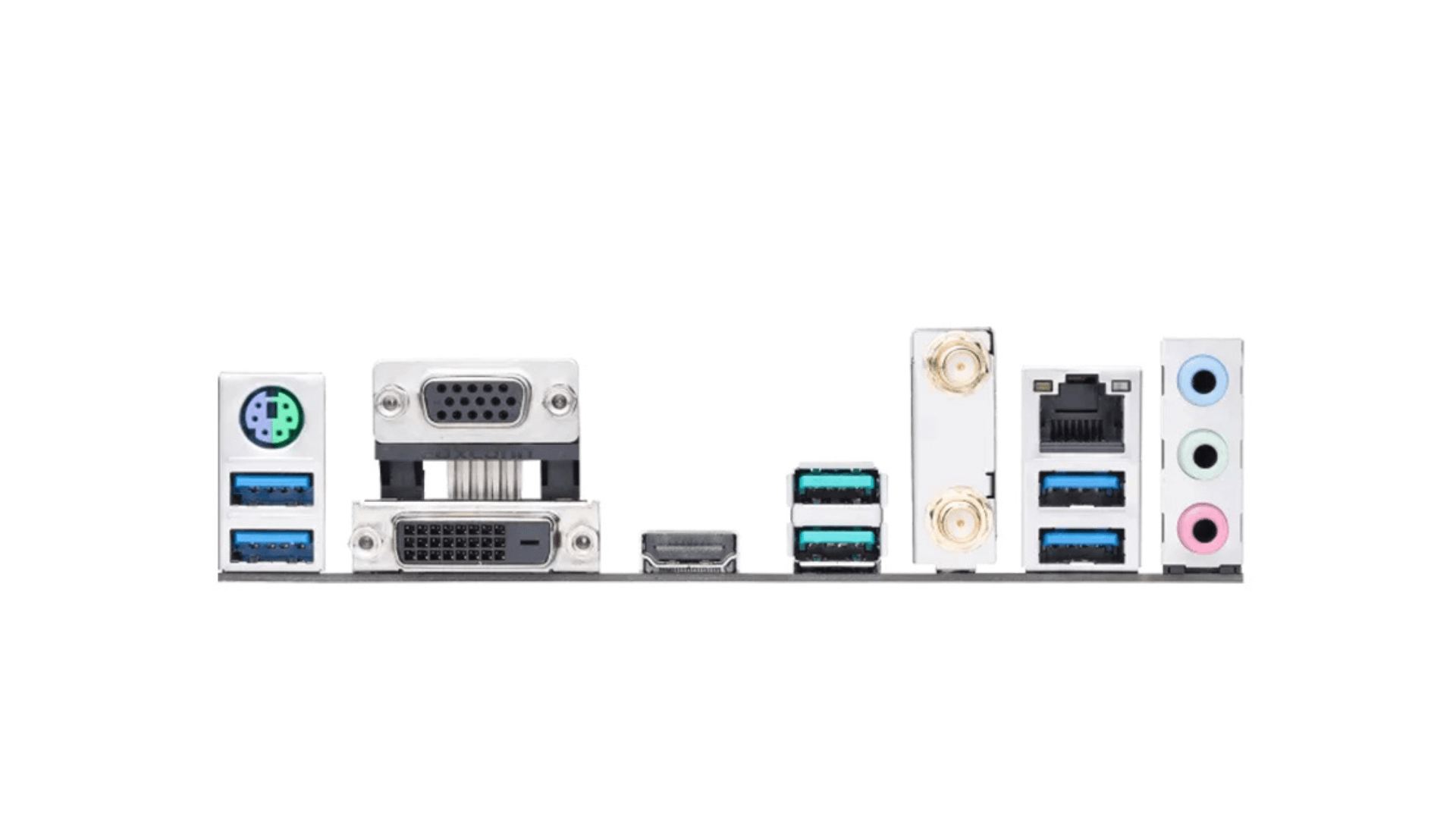

Cổng kết nối (Back Panel)	2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x D-Sub port 1 x DVI-D port 1 x HDMI^® port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
LAN / Wireless	Wi-Fi 6 Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Kích cỡ	-

XEM THÊM THÔNG SỐ

Mainboard ASUS PRIME B550M-A WIFI II (Bluetooth)

Name: Mainboard ASUS PRIME B550M-A WIFI II (Bluetooth)
Brand: Asus
SKU: MAAS0478
Price: 2699000 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAAS0478 0 đánh giá Lượt xem: 2.056 So sánh

Socket: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors Kích thước: Khe cắm RAM: 4 khe (Tối đa 128GB) Khe cắm mở rộng: 1 x PCIe 4.0 x16 slot (supports x16 mode), 1 x PCIe 3.0 x16 slot (supports x16 mode), 2 x PCIe 3.0 x1 slots

Xem thêm >

Giá niêm yết:	~~3.099.000 đ~~
Giá khuyến mại:	2.699.000 đ [Giá đã có VAT]
	🎁Từ 16/10 đến 30/11/2025 quét QR Code thanh toán giảm ngay tới 1.000.000đ Xem chi tiết
