THÔNG SỐ KỸ THUẬT

Model Version	GS1016L 1.0
Interfaces	Gigabit RJ45 Ports	16
	Shielded RJ45 Port	Có
	Extend Mode Ports	#1~#14
	VLAN Mode Ports	#1~#14
	LED	Power Speed/Link/Act of Each Ethernet Port
	Physical Buttons	VLAN/Default/Extend DIP Switch
Performance	Max Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
	MAC Address Table	8192
	Max Switching Capacity	32 Gbps
	Max Forwarding Rate	23.808 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	4 Mbit
Power	Power Input Type	AC Inlet
	Basic Power Saving
	Power Methods	AC
	Power Input	90-260V~ 50/60Hz
	Max Power Consumption	7.8W
	Idle Power Consumption	4.5W
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T
	802.1 Protocols	802.1p: LAN Layer 2 QoS/CoS
	L2 Features	IGMP Snooping Loop Prevention Loop Detection DSCP QoS 802.1p QoS
Reliability	Grounding Methods	Three-Prong Plug Grounding Point
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Mechanical	Dimension	440×180×44 mm 17.32×7.09×1.73 inches
	Product Weight	1597.9 g (56.36 oz.)
	Casing Material	Metal
	Installation	Desktop Rackmount via Brackets
Package Content	GS1016L Power Cord Installation Guide Mounting Kit
Ordering Information	Retail Package Dimension	487×267×84 mm 19.17×10.51×3.31 inches
	Retail Package Weight	EU: 2278.4 g (80.37 oz.)
	Units per Carton	5
	Carton Net Weight	EU: 11.4 kg (25.13 lbs)
	Carton Gross Weight	EU: 12.3 kg (27.12 lbs)
	Carton Dimension	50×44×28.5 cm 19.69×17.32×11.22 inches

XEM THÊM THÔNG SỐ

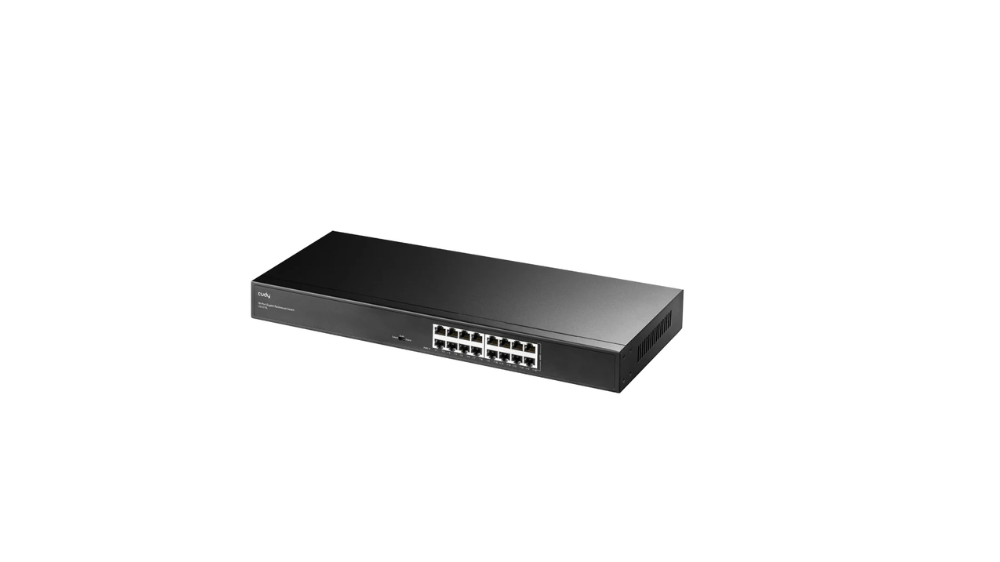

Desktop Switch Cudy16-Port Gigabit Metal 19 inch 10/100/1000 Mbps GS1016L

Name: Desktop Switch Cudy16-Port Gigabit Metal 19 inch 10/100/1000 Mbps GS1016L
Brand: Cudy
SKU: 56112
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: 0 0 đánh giá Lượt xem: 5 So sánh

Switch để bàn, treo tường :16 Cổng Gigabit-19 inch. Thông số kỹ thuật: vỏ thép, để bàn, có giá đi kèm. Tính năng: Cắm và chạy, IGMP Snooping, Phát hiện/Ngăn chặn vòng lặp, 802.1p/DSCP QoS, Công tắc DIP chế độ làm việc Chuyển mạch/VLAN/Mở rộng.
