THÔNG SỐ KỸ THUẬT

Overview
Dimensions	137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
WiFi Standard	WiFi 7
Spatial Streams	4
Coverage Area	115 m² (1,250 ft²)
Max. Client Count	200+
Uplink	2.5 GbE
Mounting	Wall (Metal Wall Mount Included)
Power Method	PoE, PoE+ (Required for PoE output)
Performance
MIMO	5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate	5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40)
Antenna Gain	5 GHz: 8 dBi 2.4 GHz: 4 dBi
Max. TX Power	5 GHz: 24 dBm 2.4 GHz: 23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates	802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing	✓
Band Steering	✓
802.11v BSS Transition Management	✓
802.11r Fast Roaming	✓
802.11k Radio Resource Management (RRM)	✓
Advanced Radio Management	✓
Passpoint (Hotspot 2.0)	✓
Captive Hotspot Portal	Custom Branding Landing Page ✓
Voucher Authentication	✓
Payment-Based Authentication	✓
External Portal Server Support	✓
Password Authentication	✓
Guest Network Isolation	✓
Private Pre-Shared Key (PPSK)	✓
WiFi Speed Limiting	✓
Client Device Isolation	✓
WiFi Schedules	✓
RADIUS over TLS (RadSec)	✓
Dynamic RADIUS-assigned VLAN	✓
Hardware
Max. Power Consumption	13W (Excluding PoE output)
Supported Voltage Range	42.5—57V DC
Networking Interface	(3) 2.5 GbE RJ45 ports
Weight	400 g (14.1 oz)
Management	Ethernet Built-In Switch (1) PoE+ input and (1) PoE output
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Aluminum alloy
LEDs	System White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant	✓
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Software
Application Requirements	UniFi Network Version 9.0.114 and later Mobile App iOS™ version 10.20.2 and later Android™ version 10.21.7 and later

XEM THÊM THÔNG SỐ

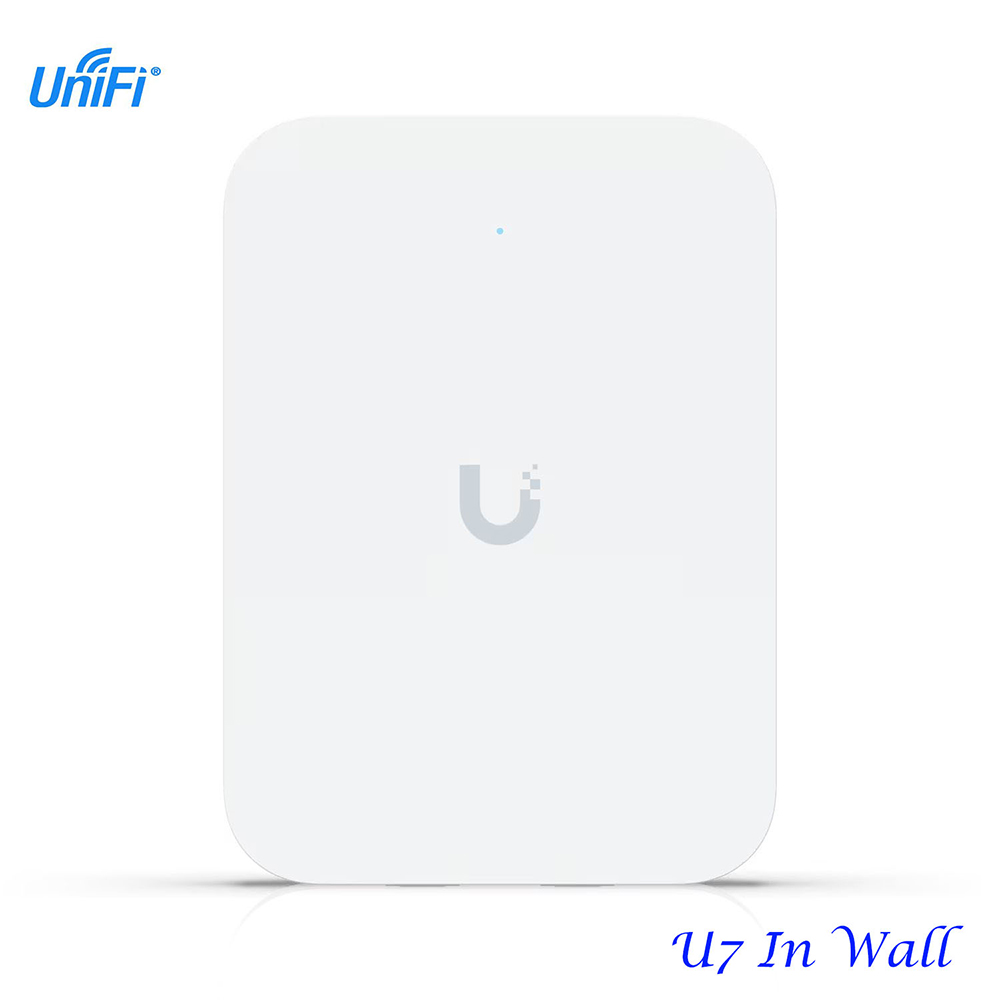

Bộ phát WiFi7 Ubiquiti UniFi U7 In-Wall | U7-IW

Name: Bộ phát WiFi7 Ubiquiti UniFi U7 In-Wall | U7-IW
Brand: Ubiquiti
SKU: 55544
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: 0 0 đánh giá Lượt xem: 70 So sánh

Công nghệ WiFi 7 (2.4Ghz và 5GHz) Tốc độ WiFi lên đến 5Gbps (1) Cổng Gigabit RJ45 (PoE In) (2) Cổng Gigabit RJ45, trong đó 1 cổng cấp PoE out
