Phóng to Hình sản phẩm

THÔNG SỐ KỸ THUẬT

Sản phẩm	Bo mạch chủ
Tên Hãng	MSI
Model	PRO X870E-P WIFI
CPU hỗ trợ	AMD
Chipset	AMD X870E
RAM hỗ trợ	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s
Khe cắm mở rộng	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Ổ cứng hỗ trợ	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
Cổng kết nối (Internal)	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

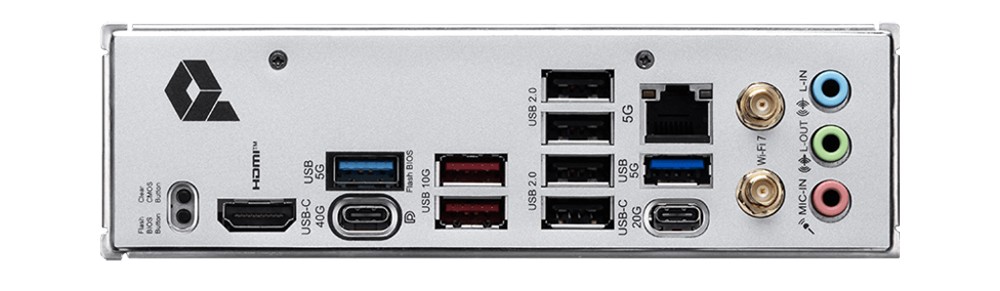

BACK PANEL	Clear CMOS Button USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 20Gbps Type-C USB 5Gbps Type-A
LAN / Wireless	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth^® 5.4**, MLO, 4KQAM Realtek^® 8126VB 5G LAN
Kích cỡ	ATX 243.84mmx304.8mm

XEM THÊM THÔNG SỐ

Mainboard MSI Pro X870E-P WIFI DDR5

Name: Mainboard MSI Pro X870E-P WIFI DDR5
Brand: MSI
SKU: MAMS0358
Price: 6449000 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAMS0358 0 đánh giá Lượt xem: 23 So sánh

Socket: Socket AM5 Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Kích thước: ATX Khe cắm RAM: 4 khe (Tối đa 256GB) Khe cắm mở rộng: 3x PCI-E x16 slot, 1x PCI-E x1 slot

Xem thêm >

Giá niêm yết:	~~7.999.000 đ~~
Giá khuyến mại:	6.449.000 đ [Giá đã có VAT]
	🎁Từ 01/01 đến 31/01/2026 quét QR Code thanh toán giảm ngay tới 1.000.000đ Xem chi tiết
	🎁Chốt đơn ngay - Hồng bao trao tay: Từ 10/01 đến 16/02/2026 tặng 01 bao lì xì may mắn (PKKH1364) cho toàn bộ đơn hàng Xem chi tiết
