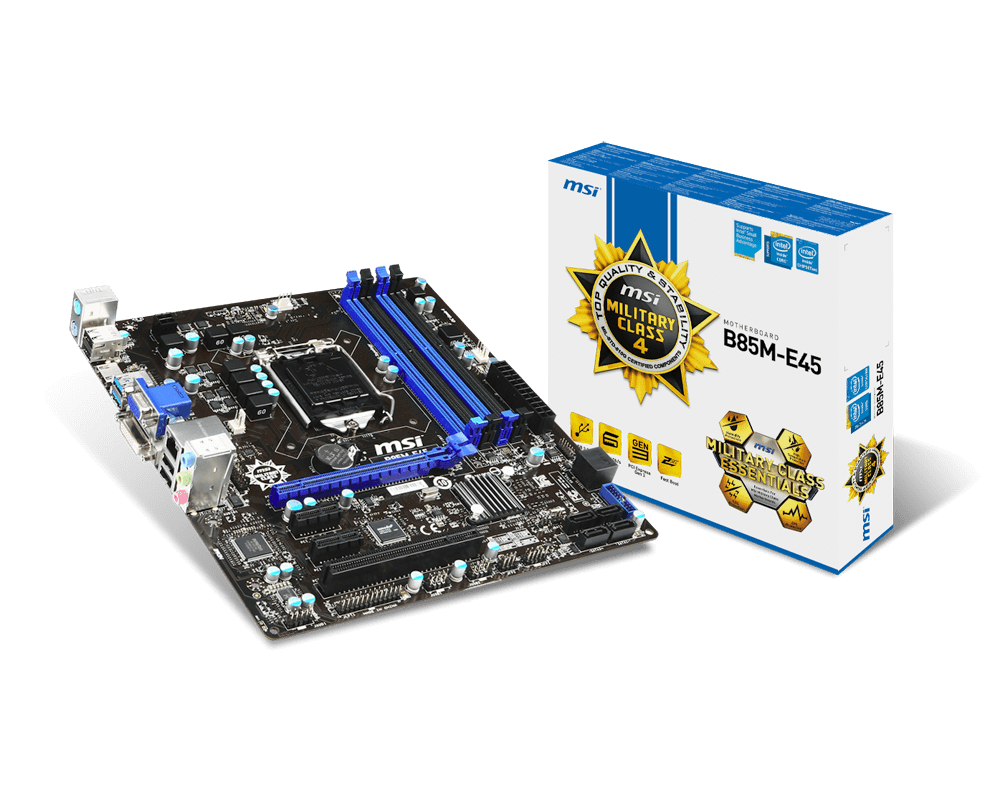

Thông tin chi tiết Bo mạch chủ (mainboard)

Hãng sản xuất

Model

B85M E45

Chipset

Intel^® B85

CPU hỗ trợ

Supports 4th Generation Intel^® Core™ i7 / Core™ i5 / Core™ i3 / Pentium^® / Celeron^® processors for LGA 1150 socket

RAM hỗ trợ

• Supports four unbuffered 4 x DIMM of 1.5 Volt DDR3 1066/1333/1600 DRAM up to 64GB Max
• Supports Dual channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Đồ họa

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz/2560x1600@60 Hz
• 1 x VGA port, supporting a maximum resolution of 1920x1200@60Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz

Lưu trữ

• SATAIII controller integrated in Intel^® B85 chipset
- Up to 6Gb/s transfer speed.
- Supports four SATAIII port (SATA1~4) by B85

• SATAII controller integrated in Intel^® B85 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA5~6) by B85

Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology*

Audio

• Chipset integrated by Realtek^® ALC887
- 7.1-Channel High Definition Audio

LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek^® 8111G

Khe cắm mở rộng

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots
• 1 x PCI slot

USB

• 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
• 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

Kết nối I/O bên trong

- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
- 4 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 1 x Clear CMOS jumper
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connectors (supports additional 2 USB 3.0 ports)
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TPM Module connector
- 1 x Front Panel Audio connector
- 1 x Chassis Intrusion connector

Kết nối bảng phía sau

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
- 1 x HDMI port, supporting the maximum resolution of 4096x2160@24Hz, 24bpp/ 2560x1600@60Hz, 24bpp/ 1920x1080@60Hz, 36bpp
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz
- 1 x Graphics port, supporting a maximum resolution of 1920x1200 @60Hz

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Hệ điều hành hỗ trợ

Kích thước
