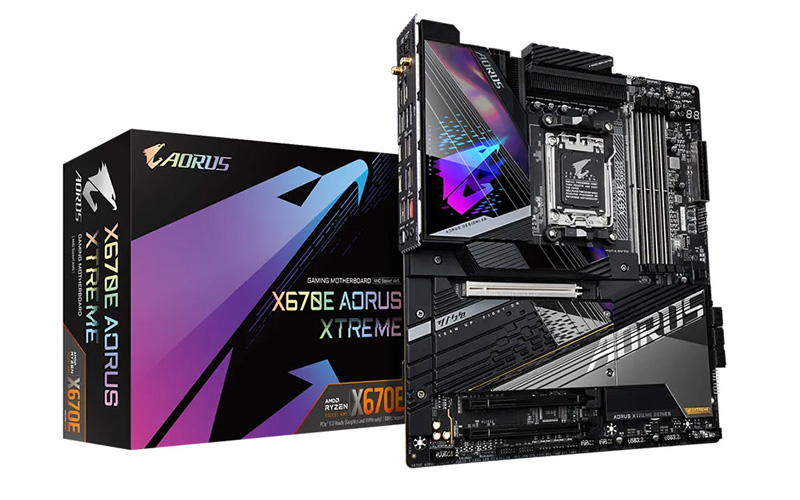

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

X670E AORUS XTREME

CPU hỗ trợ

AMD

Chipset

AMD X670

RAM hỗ trợ

4 x DDR5 DIMM sockets supporting up to 192 GB

Khe cắm mở rộng

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode
   * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connectors is populated, the PCIEX16 slot operates at up to x8 mode.
2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
   (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

Chipset:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Ổ cứng hỗ trợ

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:

1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

2 x M.2 connectors (M2B_CPU/M2C_CPU), integrated in the CPU, supporting Socket 3,M key, type 22110/2280 SSDs:

1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
   * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors.

1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

1. AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

6 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports on the back panel

Chipset:

1. 2 x USB Type-C^® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
2. 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers
4. 4 x USB 2.0/1.1 ports available through the internal USB headers

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 4 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 1 x CPU cooler LED strip/RGB LED strip header
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support
15. 2 x USB 3.2 Gen 1 headers
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x THB_U4 add-in card connector
19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
20. 1 x power button
21. 1 x reset button
22. 2 x temperature sensor headers
23. 1 x reset jumper
24. 1 x Clear CMOS jumper
25. Voltage Measurement Points

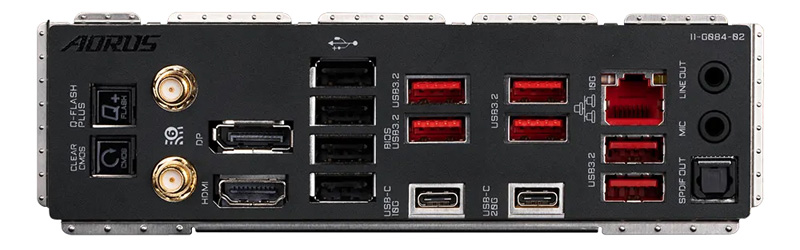

Cổng kết nối (Back Panel)

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 1 x DisplayPort
5. 1 x HDMI port
6. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
7. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
8. 6 x USB 3.2 Gen 2 Type-A ports (red)
9. 4 x USB 2.0/1.1 ports
10. 1 x RJ-45 port
11. 1 x optical S/PDIF Out connector
12. 2 x audio jacks

LAN / Wireless

1. Marvell^® AQtion AQC113C 10GbE LAN chip
   (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
2. Intel^® Wi-Fi 6E AX210 (PCB rev. 1.0)
   1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   2. BLUETOOTH 5.3
   3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
   1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   2. BLUETOOTH 5.2
   3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   (Actual data rate may vary depending on environment and equipment.)

Kích cỡ

1. E-ATX Form Factor; 30.5cm x 26.9cm
