Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

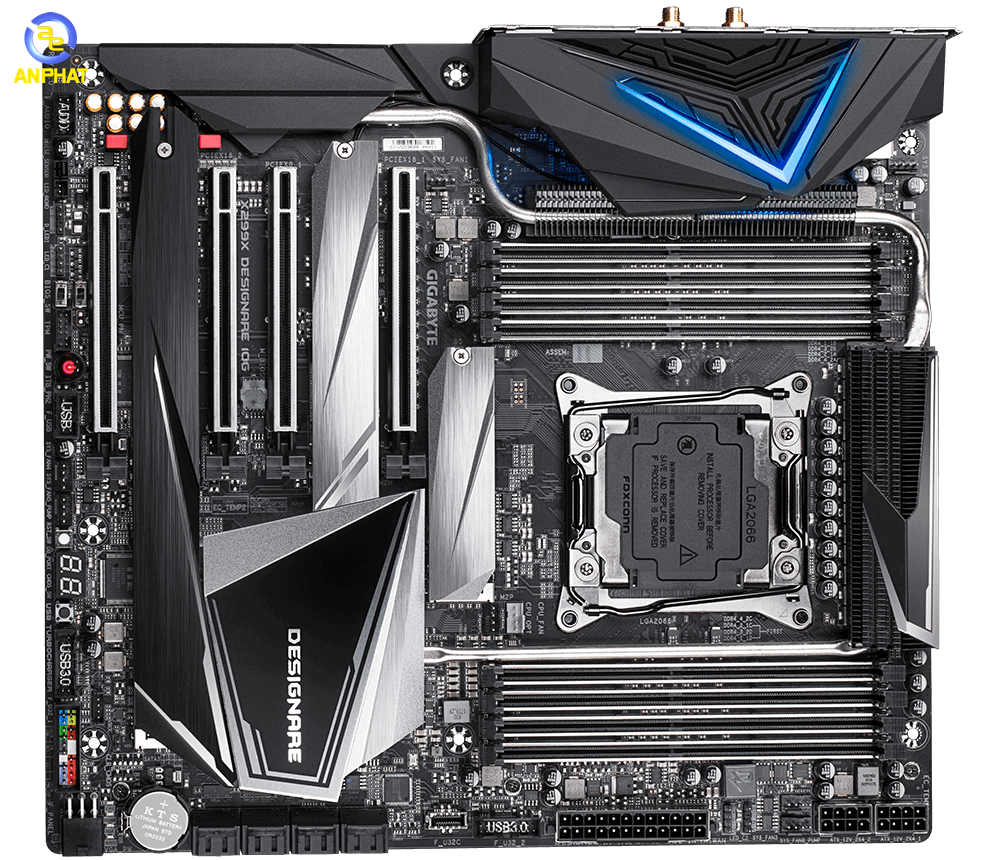

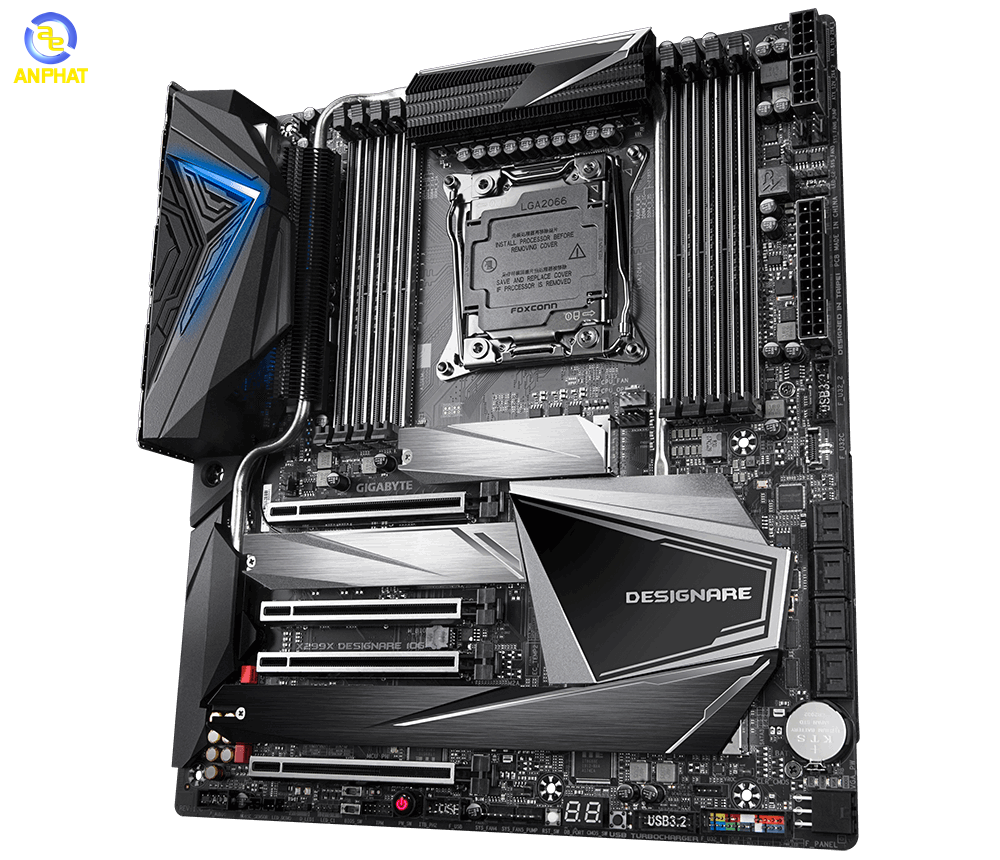

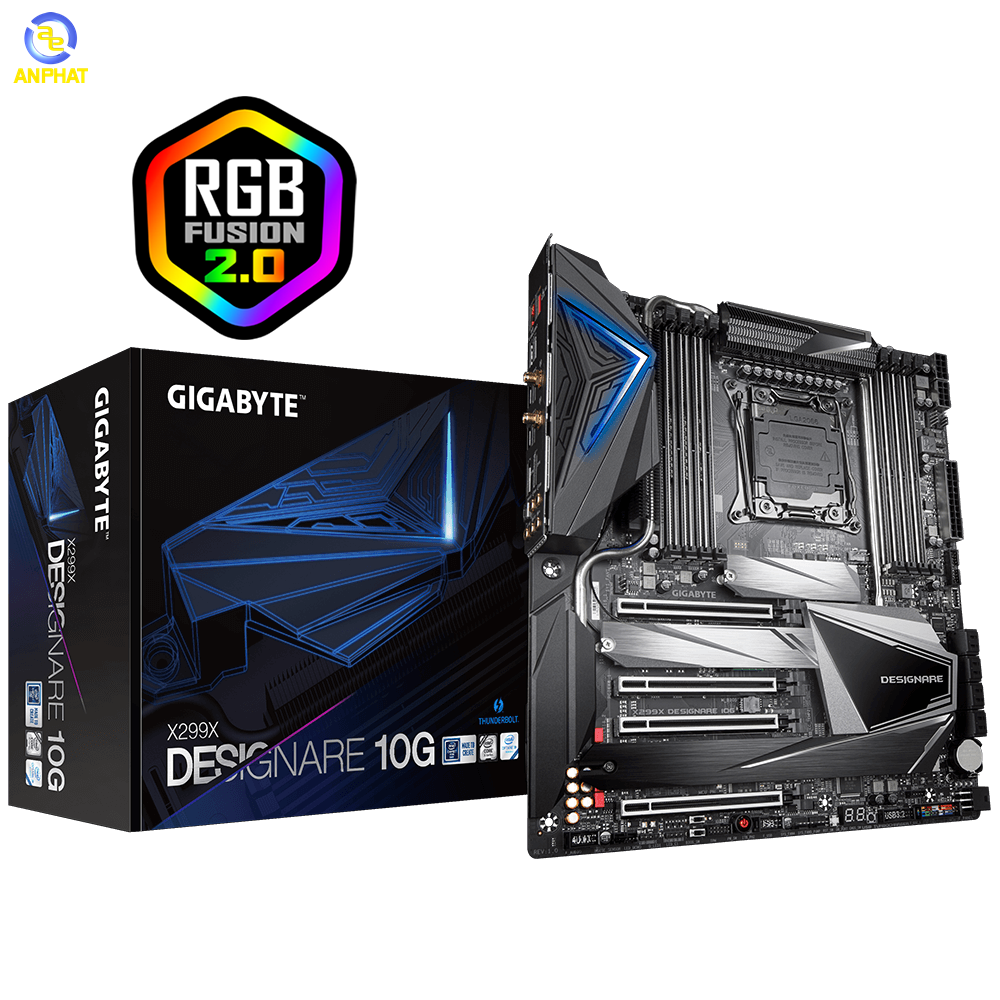

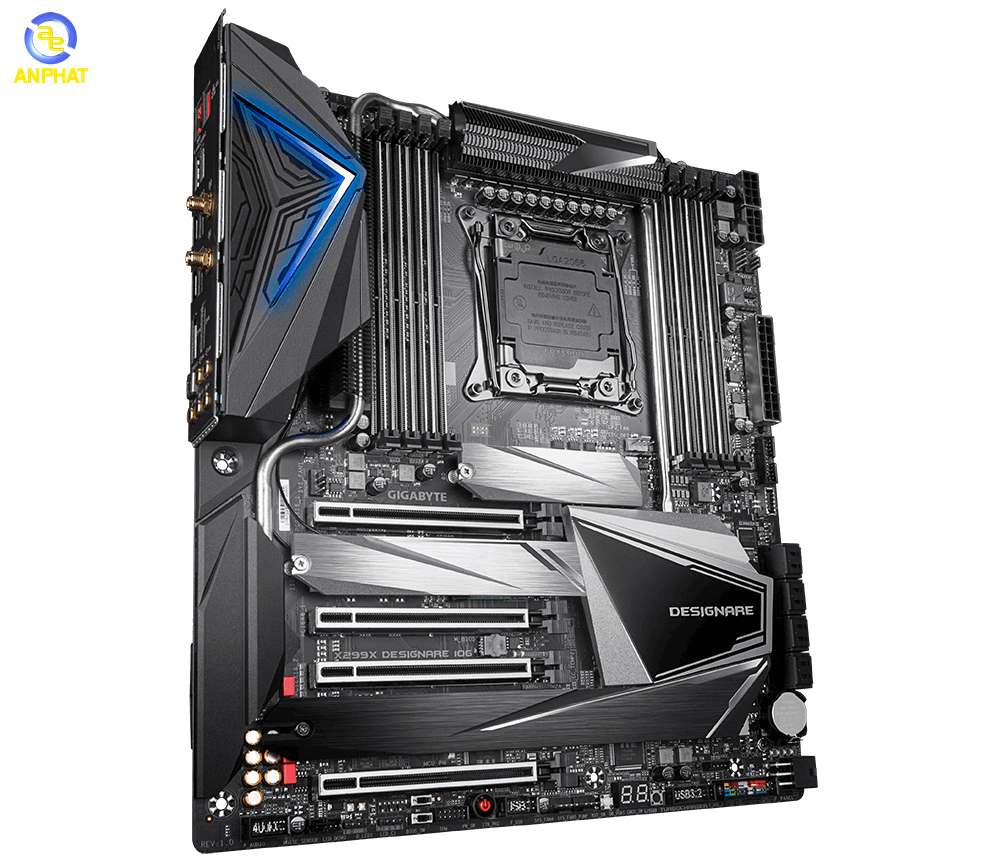

X299X DESIGNARE 10G

CPU hỗ trợ

Intel

Chipset

X299

RAM hỗ trợ

Intel^® Core™ X series 48-lane processors:

8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933/2666/2400/2133 MHz memory modules

Intel^® Core™ X series 44-lane/28-lane processors:

8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
Support for DDR4 4200(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2666/2400/2133 MHz memory modules

Khe cắm mở rộng

Intel^® Core™ X series 48-lane processors:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

Intel^® Core™ X series 44-lane processors:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8_2)
1 x PCI Express x16 slot, running at x4 (PCIEX8_1)

Intel^® Core™ X series 28-lane processors:
1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
1 x PCI Express x16 slot, running at x8 (PCIEX16_2)
1 x PCI Express x16 slot, running at x4 (PCIEX8_1)

Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q)
6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x VGA_PW power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x Intel^® VROC Upgrade Key header
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x noise detection header
1 x Clear CMOS jumper
1 x power button
1 x reset button
1 x Clear CMOS button
2 x temperature sensor headers
2 x BIOS switches

Cổng kết nối (Back Panel)

2 x DisplayPort In ports
2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.2 Gen 2 support)
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks

LAN / Wireless

Intel^® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports

Kích cỡ

E-ATX Form Factor; 30.5cm x 27.5cm
