Thông tin chi tiết Bo mạch chủ (mainboard)

Hãng sản xuất

Model

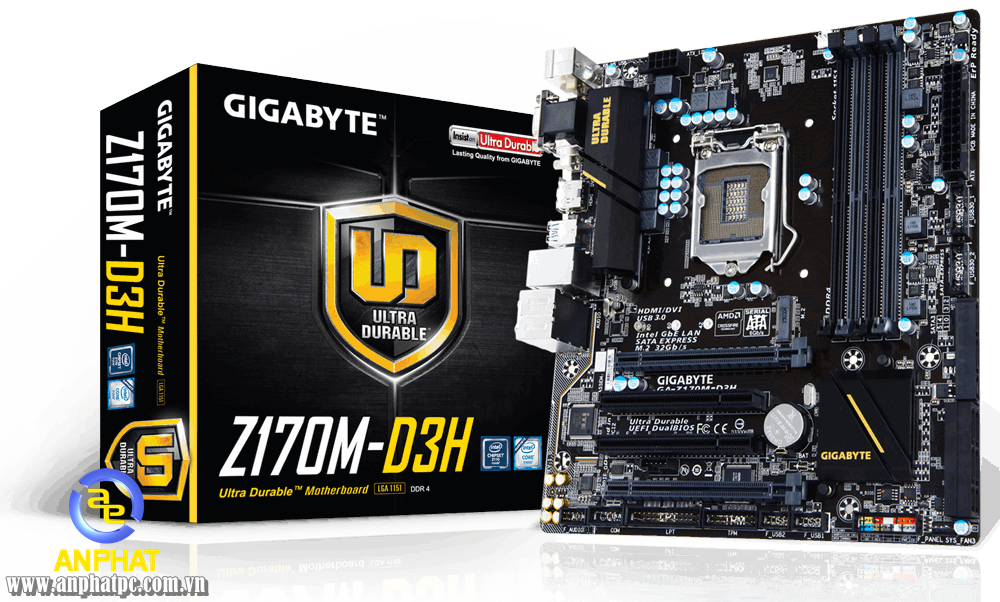

GA-Z170M-D3H

Chipset

Intel^® Z170 Express

CPU hỗ trợ

1. Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/ Intel^®Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU

RAM hỗ trợ

1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Đồ họa

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
   * Support for HDMI 1.4 version.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

Support for 3-Way/2-Way AMD CrossFire™and 2-Way NVIDIA^® SLI™ Technology

Lưu trữ

1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2. 3 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10

Audio

1. Realtek^® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

LAN

1. Intel^® GbE LAN chip (10/100/1000 Mbit)

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
3. 2 x PCI slots

USB

1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Kết nối I/O bên trong

1. 1 x 24-pin ATX main power connector
2. Š1 x 8-pin ATX 12V power connector
3. Š1 x M.2 Socket 3 connector
4. Š3 x SATA Express connectors
5. Š6 x SATA 6Gb/s connectors
6. Š1 x CPU fan header
7. Š3 x system fan headers
8. Š1 x front panel header
9. Š1 x front panel audio header
10. Š1 x S/PDIF Out header
11. Š2 x USB 3.0/2.0 headers
12. Š2 x USB 2.0/1.1 headers
13. Š1 x Trusted Platform Module (TPM) header
14. Š1 x Thunderbolt™ add-in card connector
15. Š1 x serial port header
16. Š1 x parallel port header
17. Š1 x Clear CMOS jumper

Kết nối bảng phía sau

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 4 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Điều khiển I/O

1. iTE^® I/O Controller Chip

Theo dõi phần cứng

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control

BIOS

1. 2 x 64Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Tính năng hỗ trợ

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Smart TimeLock
   Smart Keyboard
   Smart Backup
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

Hệ điều hành hỗ trợ

Kích thước

Phụ kiện đi kèm

1. GA-Z170M-D3H DDR3 motherboard
2. Two SATA cables
3. Motherboard driver disk
4. I/O Shield
5. User's Manual
6. One G Connector
