THÔNG SỐ KỸ THUẬT

CPU	Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/ Intel^® Core™ i3 processors/Intel^® Pentium^® processors/ Intel^®Celeron^® processors in the LGA1150 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel^® H97 Express Chipset
Memory	4 x DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor - Intel^® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz * Support for HDMI 1.4a version. Support for up to 3 displays at the same time Maximum shared memory of 512MB
Audio	Realtek^® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX4 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots
Multi-Graphics Technology	Support for 2-Way AMD CrossFire™ technology
Storage Interface	Chipset: 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB	Chipset: 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header) 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header

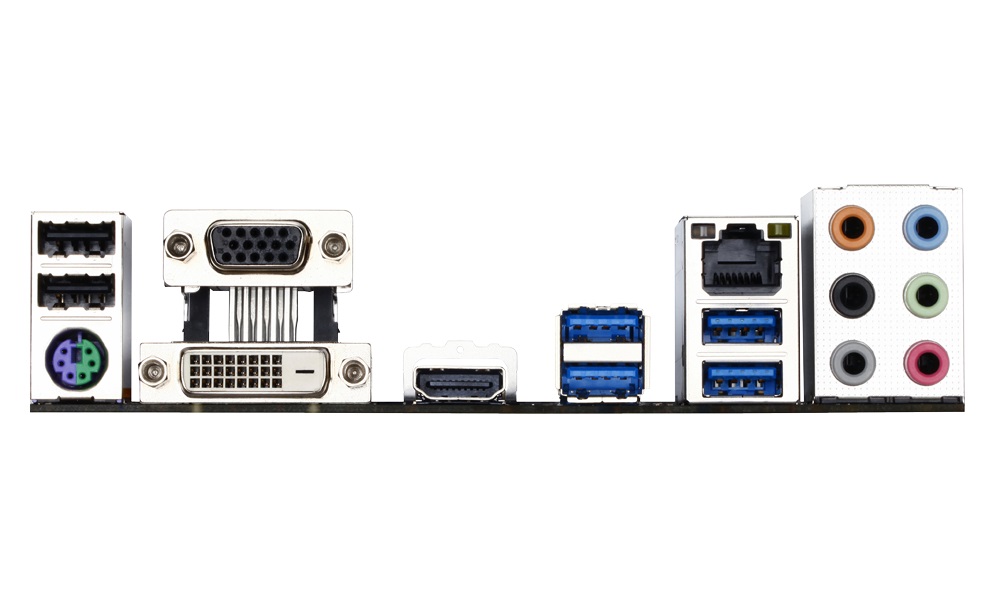

Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup Fast Boot ON/OFF Charge Smart TimeLock Smart Recovery 2 System Information Viewer USB Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install
Bundle Software	Norton^® Internet Security (OEM version) Intel^® Rapid Start Technology Intel^® Smart Connect Technology Intel^® Smart Response Technology Intel^® Small Business Advantage
Operating System	Support for Windows 8.1/8/7
Form Factor	Micro ATX Form Factor; 24.4cm x 22.5cm

XEM THÊM THÔNG SỐ

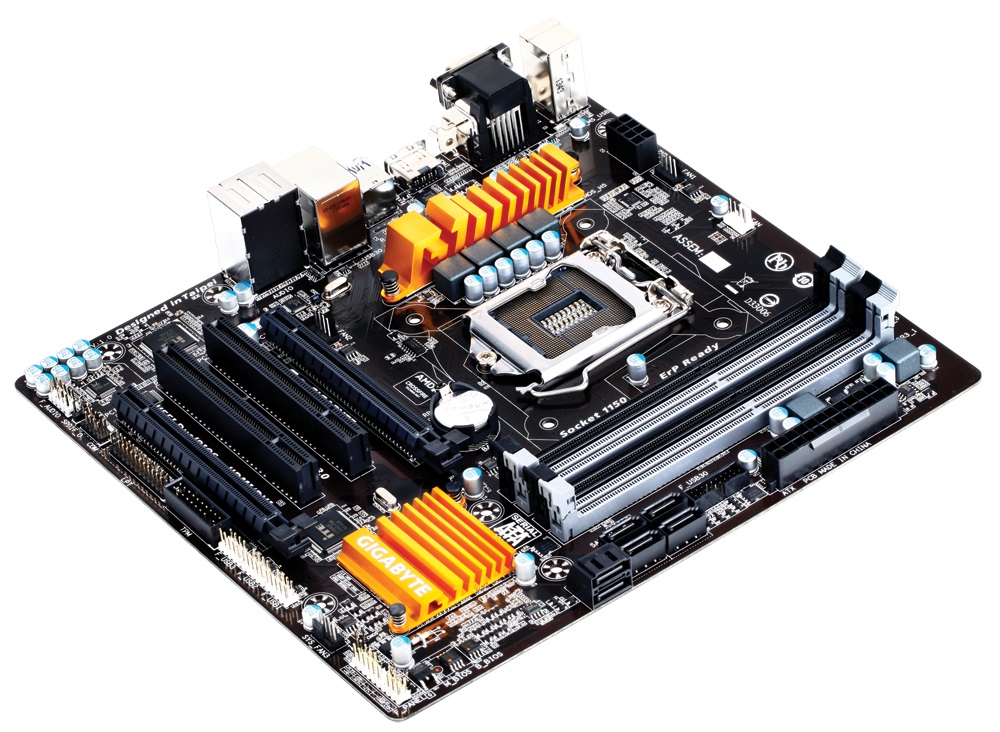

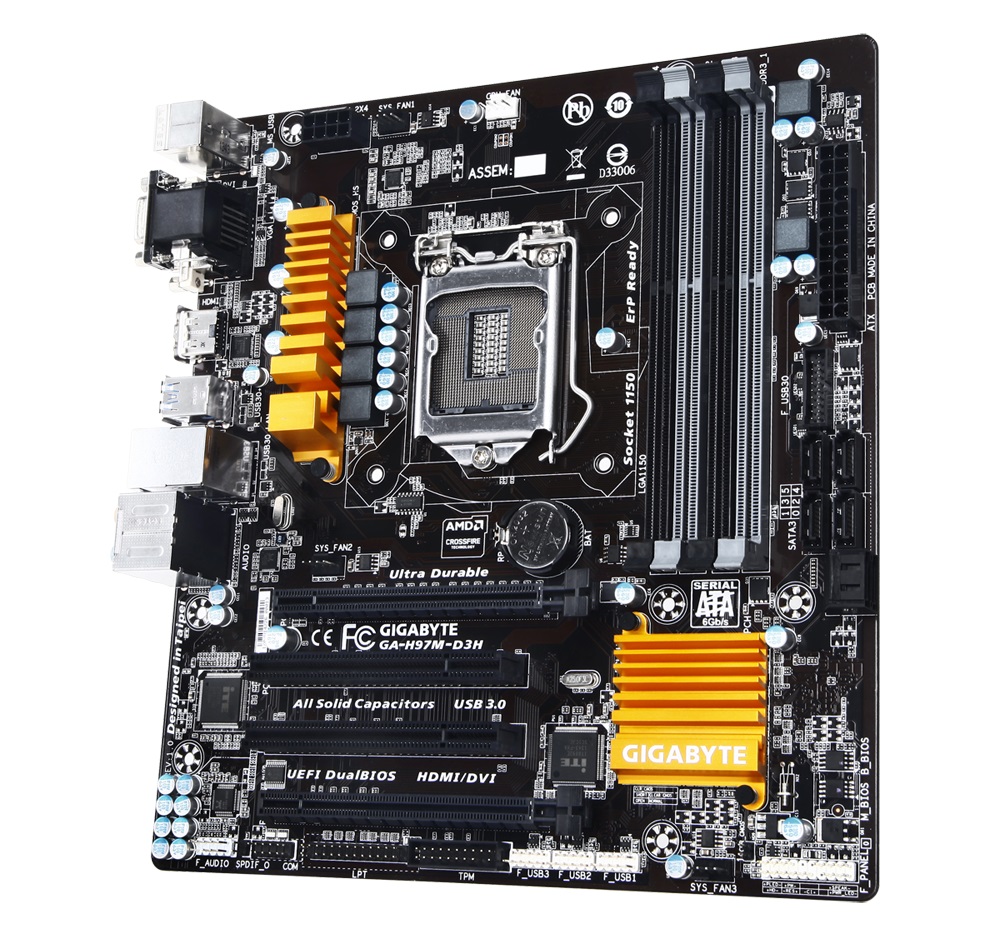

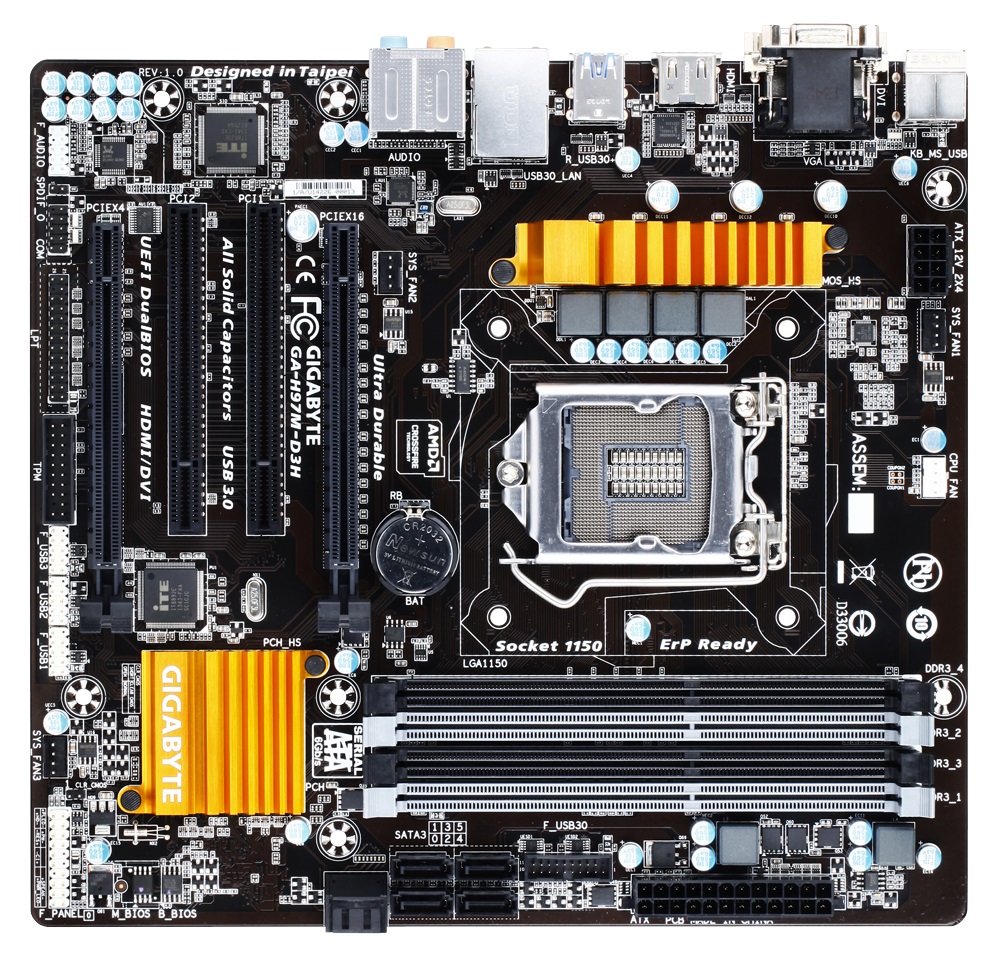

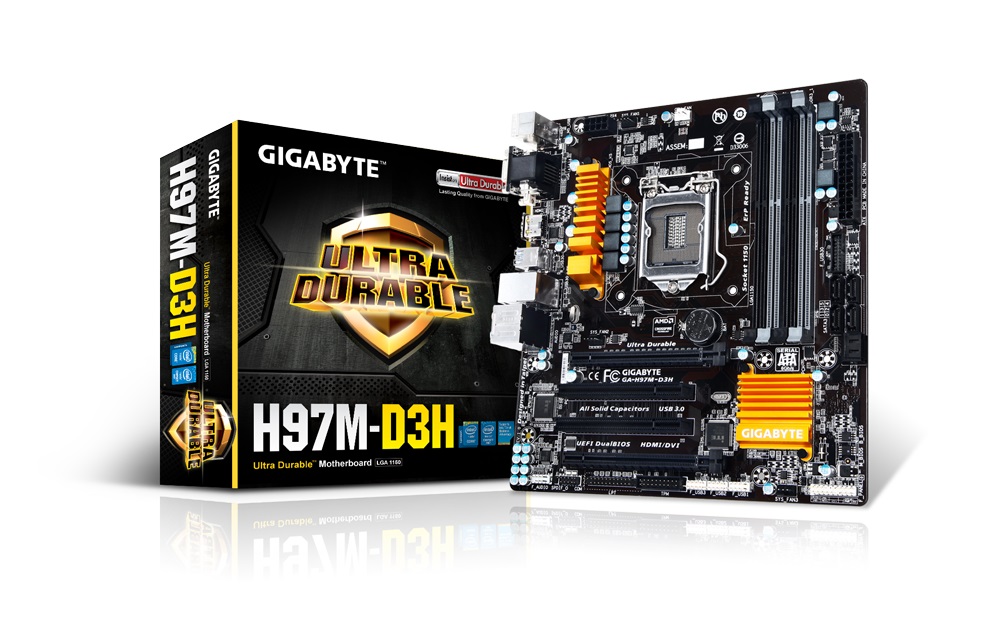

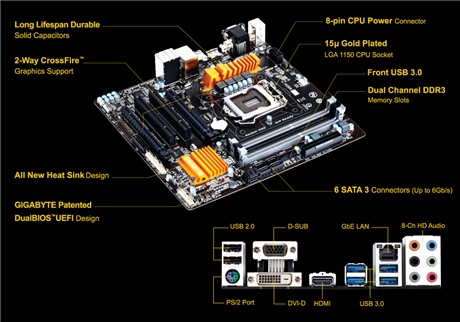

Mainboard GIGABYTE GA-H97M-D3H

Name: Mainboard GIGABYTE GA-H97M-D3H
Brand: Gigabyte
SKU: MAGI0015
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAGI0015 0 đánh giá Lượt xem: 8.087 So sánh

Bo mạch chủ GIGABYTE GA-H97M-D3H Intel H97 chipset - Socket LGA 1150 - tích hợp SOUND HD Audio 7.1-CHANNEL + VGA Intel® GMA HD Technology with/ D-SUB / DVI-D / HDMI + LAN Realtek tốc độ 1000Mbps + 8*USB2.0 port + 6*USB 3.0 port + 6*SATA3 6Gb/s hỗ trợ RAID 0,1,5,10 + 2*PCIE x16 + 2*PCI + 1*PS/2 port + 1*parallel port header. Dual Channel DDR3 4*DIMM upto 32GB RAM DDR3 upto 1600MHz Support for Extreme Memory Profile (XMP).
