THÔNG SỐ KỸ THUẬT

CPU	Supports Intel ® Socket 1151 7th generation / 6th generation Core ™ i7 / Core ™ i5 / Core ™ i3 / Pentium ® / Celeron ® processor supporting Intel ® 14 nm processors support Intel ® Turbo Boost 2.0 technology * Visit www .asus.com obtains a list of processor support. * Support for Intel® Turbo Boost 2.0 technology is different depending on the processor type.
Chipset	Support for Intel® B250
RAM	4 x DIMM, capacity up to 64GB, DDR4 2400/2133 MHz Non-ECC , Un-buffered Memory Dual Channel memory architecture support Intel® Extreme Memory Profile (XMP) technology * Please visit www.asus.com or user manual made reference memory Qualified Supplier Support List (QVL). * DDR4 2400MHz memory frequency is only supported by support for the 7th generation Intel® processor due to Intel® chip limitations. The higher memory module runs at a transfer rate of up to DDR4 2400MHz. ** Due to Intel chip limitations, the DDR4 2133MHz memory frequency is only supported by support for the 6th generation Intel® processor. The higher memory module runs at a transfer rate of up to DDR4 2133MHz.
Graphic display	Supports Intel® HD Integrated Graphics - Supports HDMI: Display resolution up to 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Shared memory up to: 1024 MB
Multiple graphics display technology	Supports AMD 2-Way CrossFireX technology
Expansion slot	1 x PCIe 3.0 / 2.0 x16 expansion card slot (x16 mode, black) 2 x PCIe 3.0 / 2.0 x16 expansion card slot (x4 mode, black) 3 x PCIe 3.0 / 2.0 x1 expansion card slot
Storage function (depending on shipping)	Intel® B250 chip: 6 x SATA 6Gb / s interface
Network function	Intel® I219V, 1 x Gigabit LAN ASUS LAN Guard Network Protection Dual interconnection between built-in media access controller (MAC) and physical layer (PHY).
Sound effect	Realtek® ALC 887 8-channel audio codec high definition audio capabilities:
USB interface	Intel® B250 chip: 6 x USB 3.0 / 2.0 connection port (4 on the rear panel, blue, 2 at the center of the motherboard) Intel® B250 chip: 6 x USB 2.0 / 1.1 connection port (4 on the rear panel , 4 in the center of the motherboard)
other functions	ASUS 5 heavy protection III: - ASUS SafeSlot Core: high-strength security slot - ASUS LANGuard network protection: network anti-static, anti-lightning! - ASUS overvoltage protection - circuit protection power supply design - stainless steel moisture I / O interface - compared 3 times the durability of ordinary materials to enhance - ASUS DIGI + digital power supply - 4 phase digital power supply design uninterrupted durability: - moisture and rust protection coating - excellent moisture and rust anti-corrosion - USBGuard protection - to prevent poor quality USB device burned computer - Channel memory security design - memory lock to ensure daily security Uninterrupted game: - Channel layered isolation design: left and right channels output the same quality sound effects - audio amplifier: headphones and speakers to restore the highest quality sound - high quality Japanese audio professional capacitor: to provide warm, natural and immersive audio - de-pop anti-explosive circuit: reduce all audio output start sonic - to convey the shock of the United States and the sound of moving: left and right channel independent wiring, both sides can output the same Quality sound effects. Uninterrupted Challenge: - ASUS Internet Lab Lab Certification - Mainstream Games with 100 or more Peripheral Tests ASUS Functions : - Ai Charger Charging Technology - ESD Static Protection - AI Suite 3 (Smart Butler 3 Generation) ASUS Silent Cooling Solution : - ASUS Fanless Design: Aesthetics Heat Sink with MOS Heat Sink - ASUS Fan Xpert 2+ ASUS EZ DIY:

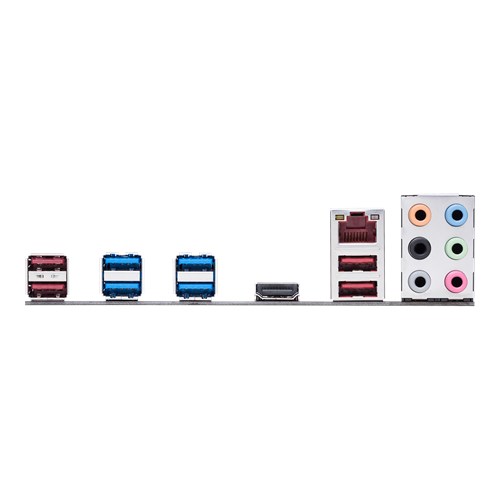

Backplane I / O interface	1 x HDMI connector 1 x LAN (RJ45) connector 4 x USB 3.1 Gen 1 interface Type-A connector 4 x USB 2.0 interface 6 x audio jack
Internal I / O interface	1 x USB 3.0 interface expandable 2-group external USB 3.0 interface (19-pin) 1 x USB 2.0 interface expandable 2-group external USB 2.0 interface 1 x serial port socket (COM) 6 x SATA 6Gb / s device connection socket 1 x TPM connector 1 x center processor fan power slot (1 x 4 -pin) 1 x chassis fan connector (1 x 4 -pin) 1 x S / PDIF_Out digital audio connection pin 1 x 24-pin EATX motherboard Power slot 1 x 8-pin ATX 12V Mainboard power slot 1 x Front panel audio interface (AAFP) 1 x Clear CMOS jumper 1 x System panel connector 1 x W_Pump +
Accessories	I / O baffle
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.0, ACPI 6.0, ASUS EZ Flash 3, CrashFree BIOS 3, F12 I café super mode
Management software	DMI 3.0, WOL by PME
Random disc	Driver ASUS Application ASUS EZ Update
operating system	Windows® 10 64-bit Windows® 8.1 64-bit * ¹ Windows® 7 32-bit * ¹ Windows® 7 64-bit * ¹
Dimensions	ATX type 12 "x 9" (30.48 cm x 22.86 cm)
Remarks	Windows® 8.1 64-bit and Windows® 7 32/64-bit are supported when using only the 6th generation Intel® processor.

XEM THÊM THÔNG SỐ

Mainboard Asus B250 Gaming ( EX-B250-V7 )

Name: Mainboard Asus B250 Gaming ( EX-B250-V7 )
Brand: Asus
SKU: MAAS0086
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAAS0086 0 đánh giá Lượt xem: 15.087 So sánh

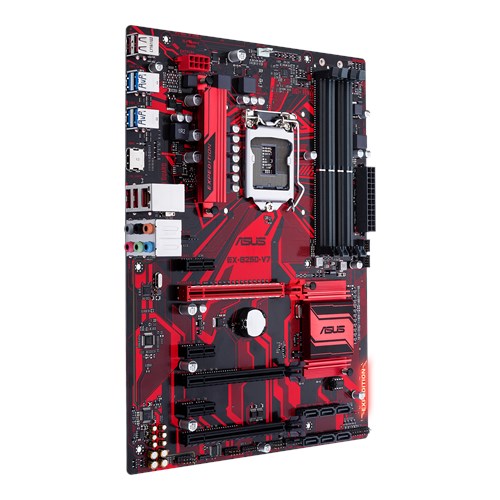

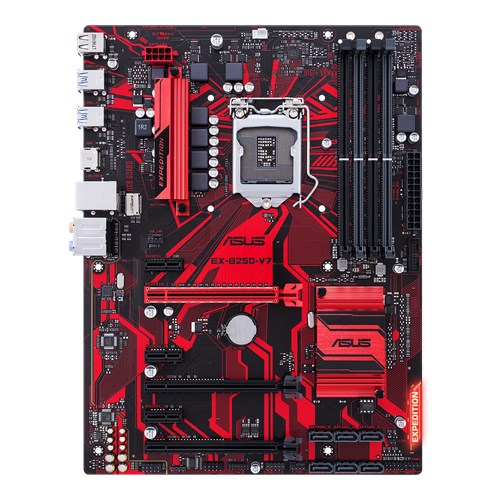

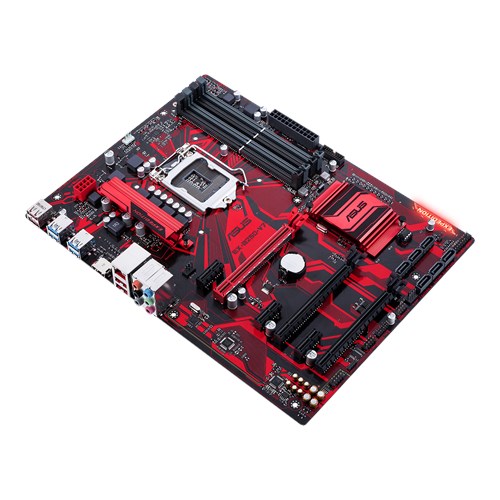

Mainboard Asus B250 Gaming ( EX-B250-V7 ) Intel LGA-1151 ATX Long March series of Internet cafes with nano-moisture anti-rust coating, USB & LAN Guard protection, SafeSlot high-strength security slot and gold-plated design, DDR4 2400MHz, HDMI, SATA 6Gb / s, USB 3.0 Should be Internet cafes born: to meet the needs of Internet cafes for a long time game Stable and durable: nano-moisture anti-rust coating, gold-plated PCIe x16 and LAN design, USB Guard protection, 5 heavy protection III.
