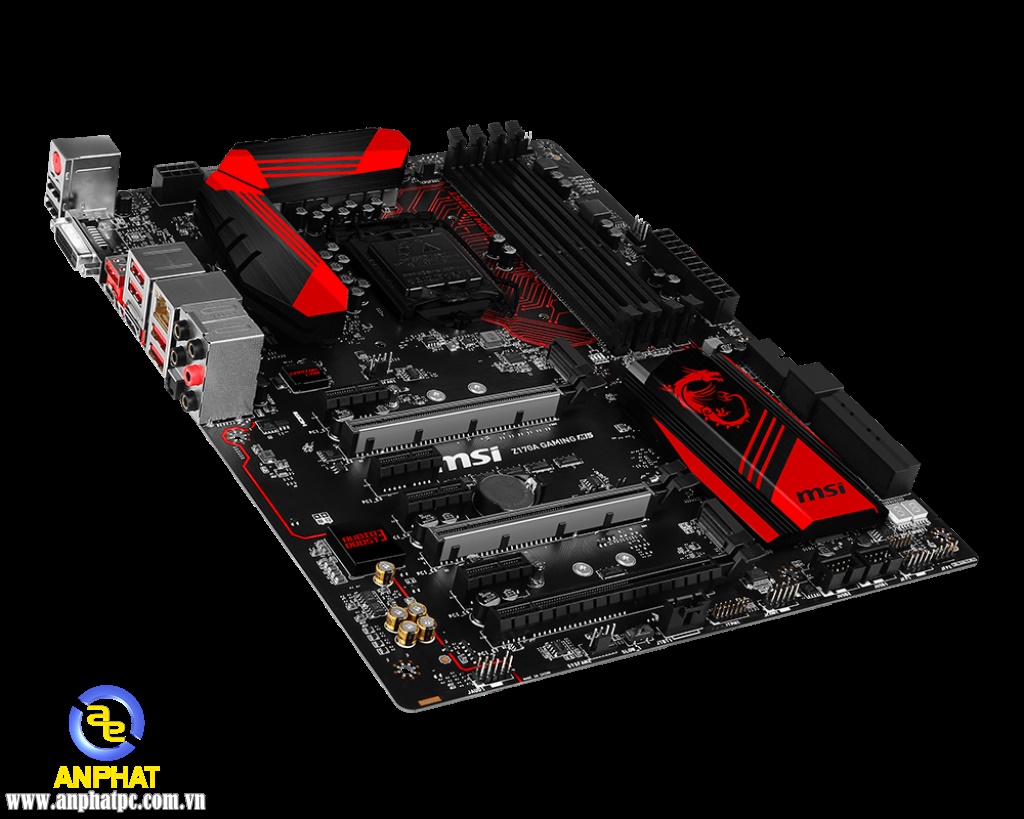

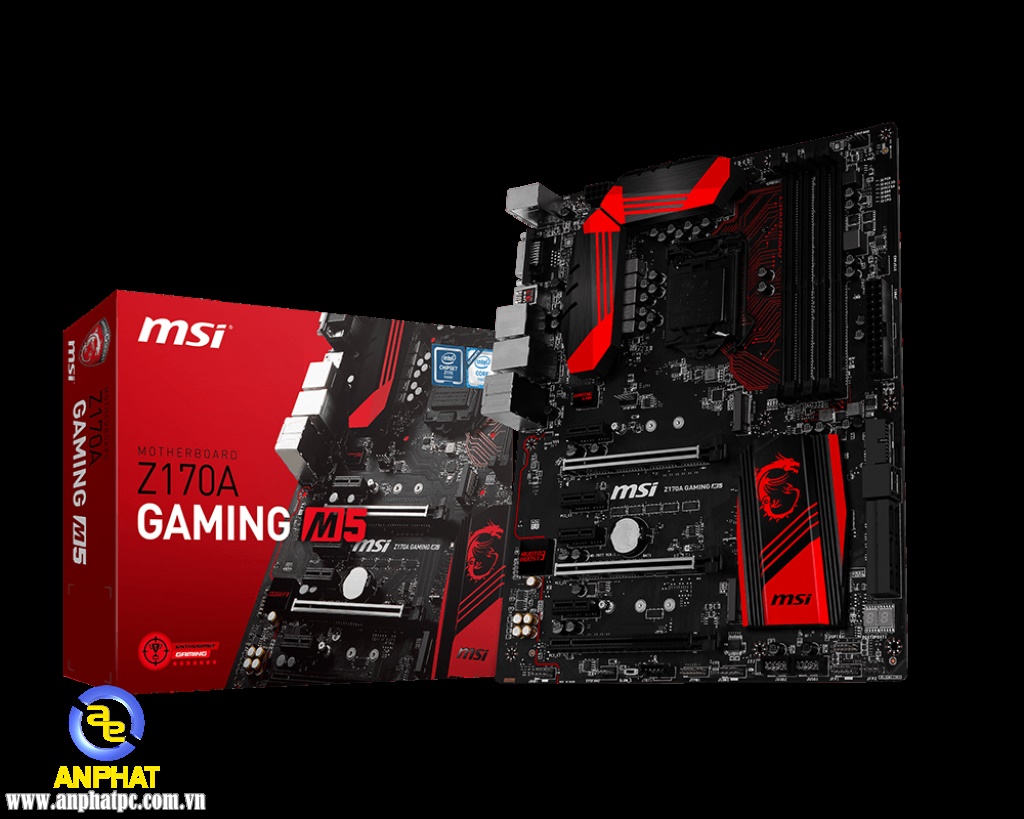

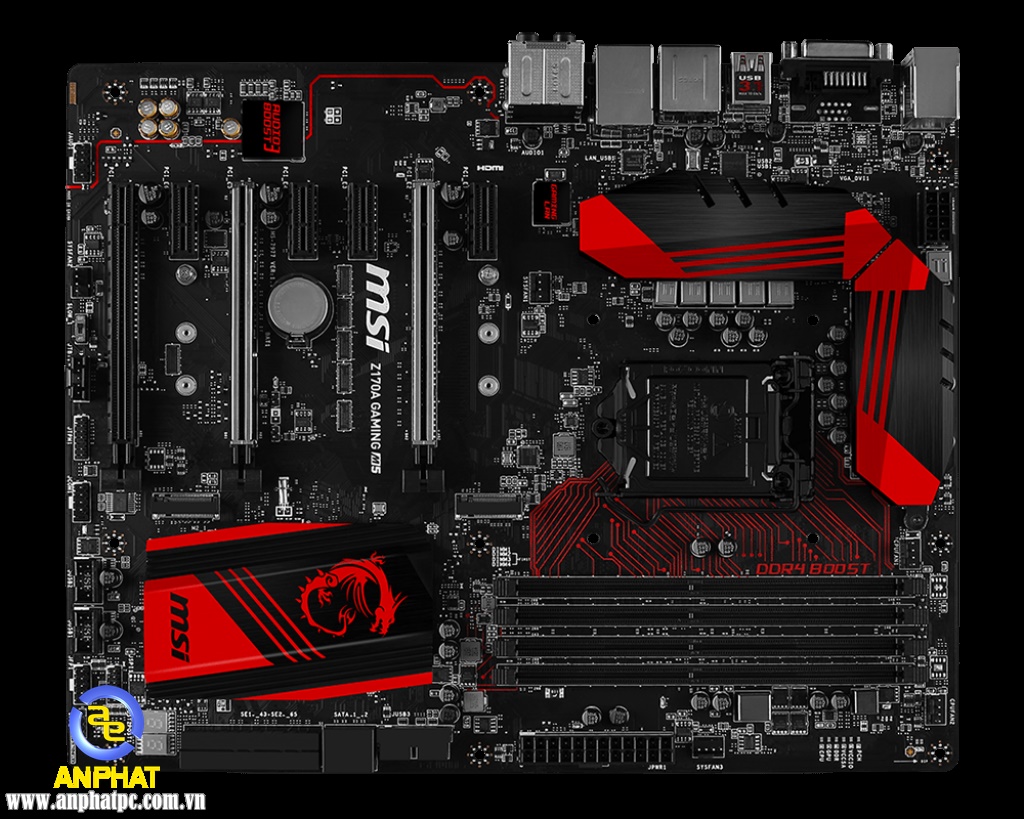

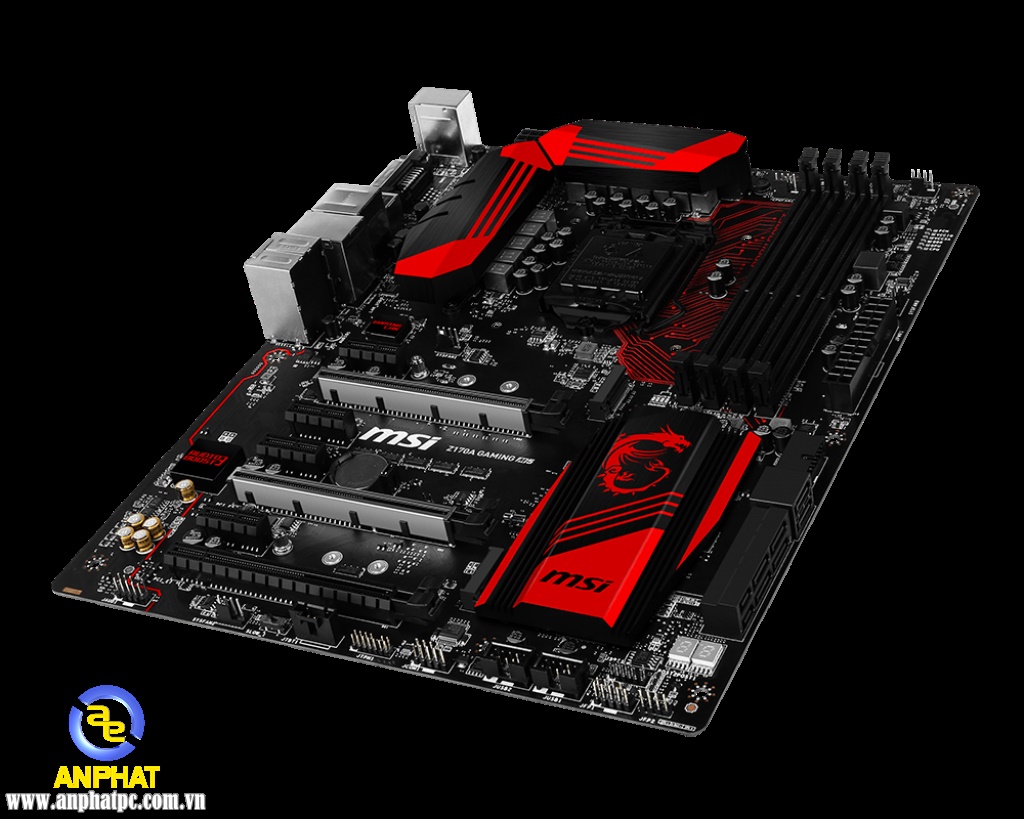

MAINBOARD MSI Z170A GAMING M5

Name: MAINBOARD MSI Z170A GAMING M5
Brand: MSI
SKU: MAMS0031
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAMS0031 0 đánh giá Lượt xem: 5.066 So sánh

MAINBOARD MSI Z170A GAMING M5 Military Class 5: Top Quality & Stability, Titanium Choke Protect: Humidity, ESD, EMI, Circuit, HighTemp, Overcurrent BIOS Flashback - 2 Way SLI - 3 Way CF - EZ Debug LED

Xem thêm >

Giá khuyến mại:	Liên hệ [Giá đã có VAT]
	🎁Từ 1/6 đến 30/6/2025 quét QR Code thanh toán giảm ngay tới 1.000.000đ Xem chi tiết

Bảo hành: 36 Tháng

KHUYẾN MẠI

- Tặng chuột Steelseries Rival 100 black trị giá 999.000vnd

🎁 ĐẶT HÀNG TRƯỚC, RƯỚC QUÀ TO

Có 0 người đã đăng ký nhận thông tin. Xem Danh sách

Chấp nhận thanh toán:

Mua hàng Online toàn quốc:
(Hotline: 1900.0323 - Phím 1 hoặc 0913.367.005)

Hiện đang có tại showroom:

* Showroom miền Bắc:

* Showroom miền Nam:

Trợ giúp

MUA HÀNG NHANH CHÓNG, TIỆN LỢI

- Mua online - Giao hàng nhanh chóng
- Ship hàng toàn quốc
- Nhận hàng và thanh toán tại nhà ( ship COD)

➤ KHUYẾN MẠI CỰC HOT ĐỪNG BỎ LỠ !!!

MÔ TẢ SẢN PHẨM

CPU

• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® Z170 Express Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
- Dual channel memory architecture
- Supports ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)

Slots

• 3 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x8/x4 or x8/ x8/x1 modes)
• 4 x PCIe 3.0 x1 slots

Onboard Graphics

• 1 x HDMI™ port, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz

Multi-GPU Support

• Supports 3-Way AMD® CrossFire™ Technology
• Supports 2-Way NVIDIA® SLI™ Technology

Storage

• Intel® Z170 Express Chipset
• 6 x SATA 6Gb/s ports* (4 ports reserved for SATA Express port)
• 2 x M.2 slots
- Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards
- Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card**
• 2 x SATAe ports (PCIe 3.0 x2)***
• Supports Intel® Smart Response Technology for Intel Core™ processors

* M.2, SATA and SATAe ports maximum support 1x M.2_PCIe + 6x SATAs or 1x M.2_SATA + 1x M.2_PCIe + 4x SATAs. Please refer to page 34 for M.2 slots with examples of various combination possibilities.
** The Turbo U.2 Host Card is not included, please purchase separately.
*** SATAe port is backward compatible with SATA.

RAID

• Intel® Z170 Express Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID1 for M.2 PCIe storage devices*

* M.2 PCIe RAID volume can be created with UEFI BIOS

USB

• ASMedia® ASM1142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on the back panel
- 1 x USB 3.1 Gen2 Type-C port on the back panel

• Intel® Z170 Express Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Realtek^® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN

• 1 x Killer™ E2400 Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x SATAe connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Chassis Intrusion connector
- 1 x Slow mode switch
- 1 x Clear CMOS jumper
- 1 x 2-Digit Debug Code LED

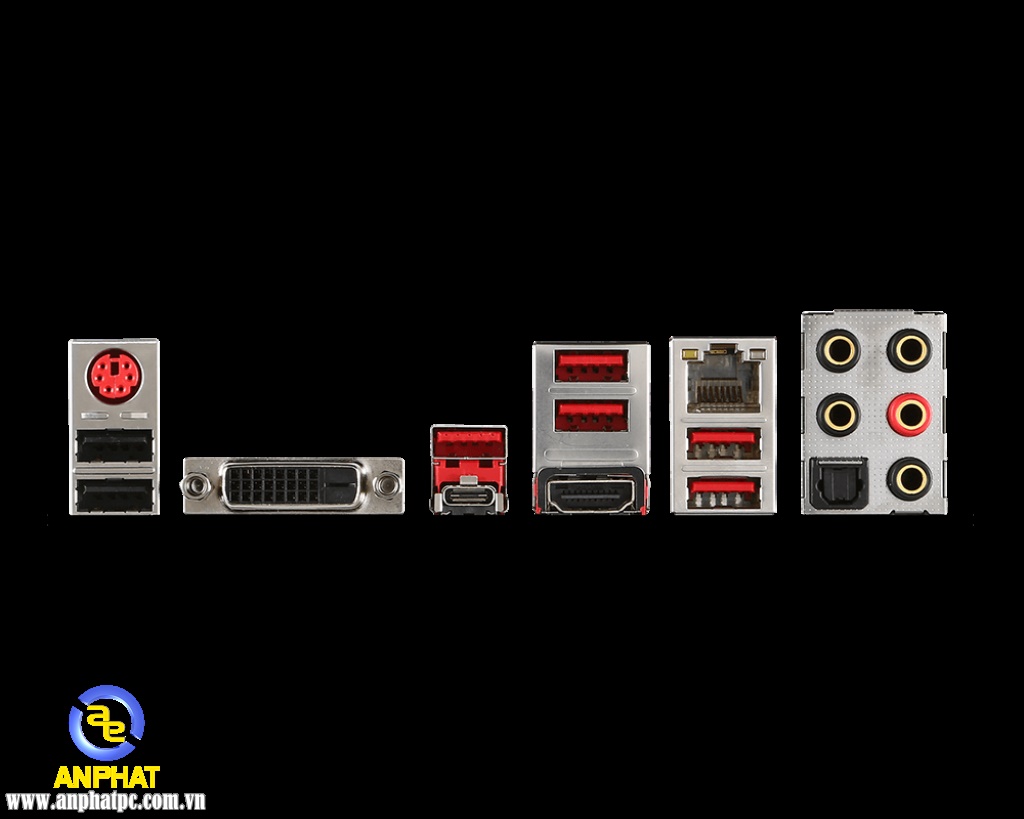

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse port
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 ports
- 1 x HDMI™ port
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks

BIOS

• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

Mounting

• 9 mounting holes
