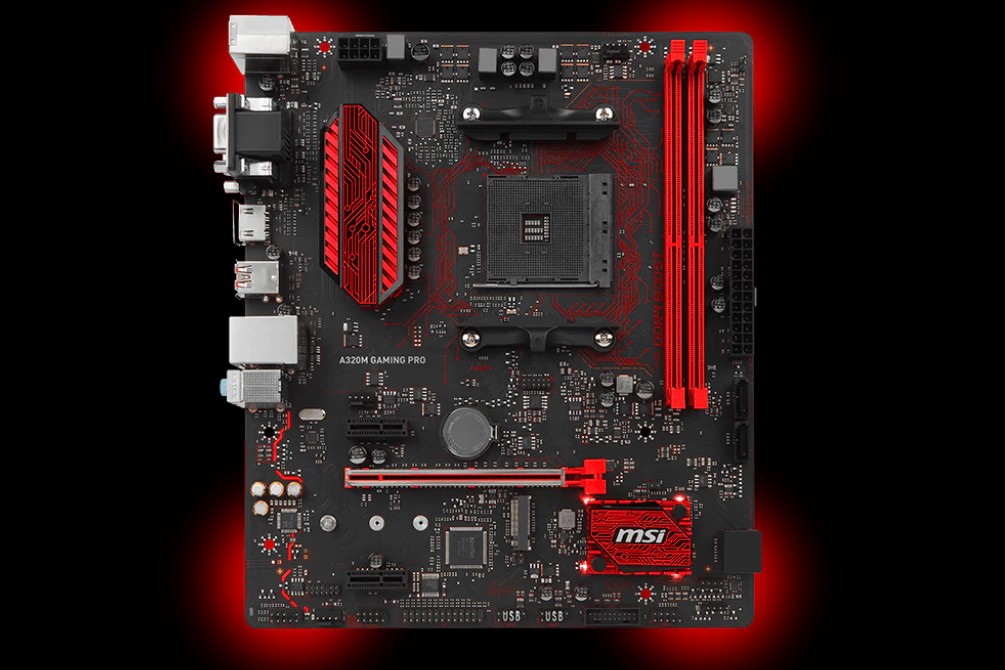

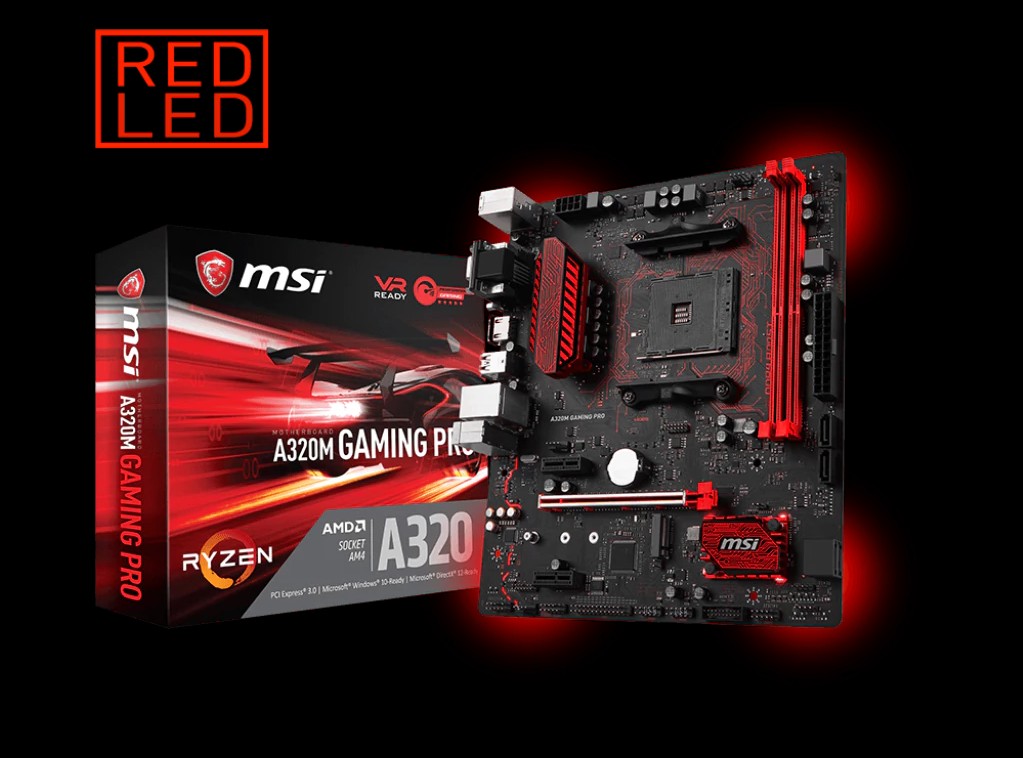

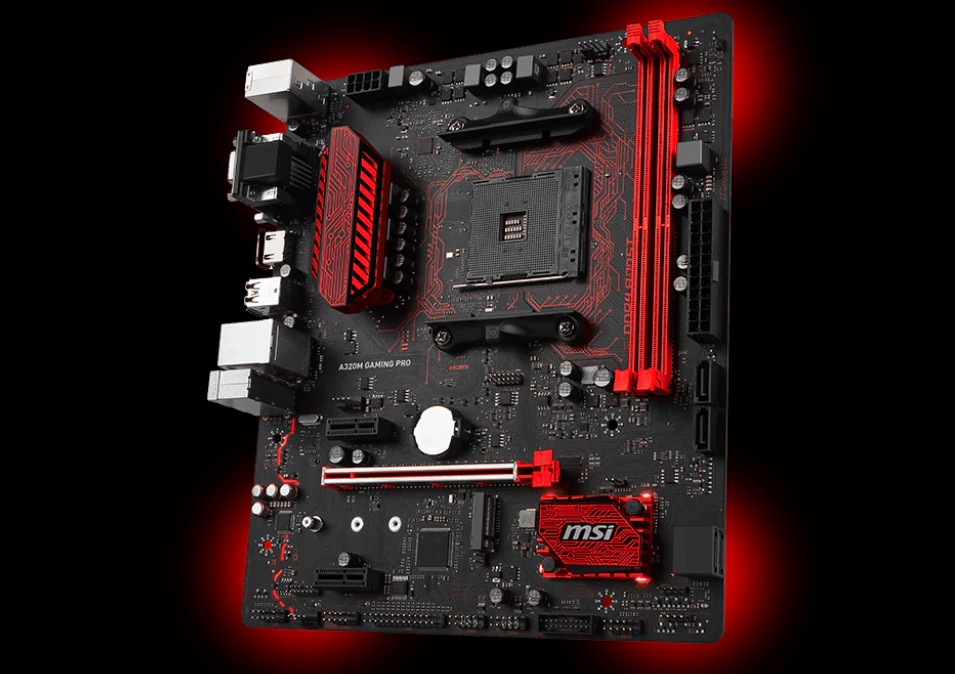

Mainboard MSI A320M GAMING PRO

Đánh giá: rate Lượt xem: 9906

Mô tả sản phẩm:

A320M GAMING PRO - Socket: AM4 AMD Ryzen và A-series/Athlon thế hệ 7 - Kích thước: m-ATX - Khe cắm RAM: 2 khe (Tối đa 32GB DDR4 1866/2133/2400/2667 MHz) - Khe cắm mở rộng: 1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1 - Khe cắm ổ cứng: 4 x SATA 6Gb/s, 1 x M.2
Bảo hành: 36 tháng
Kho hàng: Đang còn hàng tại

• Số 49 Thái Hà - Đống Đa - Hà Nội
• 84T/14 Trần Đình Xu - P. Cô Giang - Q. 1 - TPHCM

Giao hàng:
- Miễn phí giao hàng (Trong bán kính 10 km) cho đơn hàng từ 500.000 đ trở lên (Chi tiết)
- Miễn phí giao hàng 300 km đối với khách hàng Doanh Nghiệp, Dự Án
- Nhận giao hàng và lắp đặt từ 8h30 - 18h00 các ngày kể cả ngày lễ, thứ 7, CN
2.150.000 2.150.000
[Giá đã bao gồm VAT]

Hình ảnh

  • Mainboard MSI A320M GAMING PRO
  • Mainboard MSI A320M GAMING PRO
  • Mainboard MSI A320M GAMING PRO
  • Mainboard MSI A320M GAMING PRO
  • Mainboard MSI A320M GAMING PRO

MÔ TẢ CHI TIẾT


CPU

• Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
* This function will be supported depend on the CPU.



Chipset

• AMD®A320 Chipset



Main Memory

• 2 x DDR4 memory slots, support up to 32GB
- Support DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) Mhz*
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
* 7th Gen A-series/ Athlon ™ processors support up to DDR 2400 MHz only. Please refer www.msi.com for more information on compatible memory.



Slots

• 1 x PCIe 3.0 x16 slots
- RYZEN series processors support x16 mode
- 7th Gen A-series/ Athlon™ processors support x8 mode
• 2 x PCIe 2.0 x1 slots



Onboard Graphics


• 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz*
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz*
* Only support when using a 7th Gen A-series/ Athlon™ processor.
* Maximum shared memory of 2048 MB

Storage

AMD®A320 Chipset
• 4 x SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10
• 1 x M.2 slots (Key M)
- Supports PCIe 3.0 x4 (RYZEN series processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) and SATA 6Gb/s 2242/ 2260 /2280 storage devices



USB

AMD®A320 Chipset
- 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AMD® CPU Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel



Audio

• Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio



LAN

• 1 x Realtek® 8111H Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Extended LED strip connector
- 1 x Clear CMOS jumper



Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI™ port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x LAN (RJ45) port
- 3 x audio jacks



Dimension

• 9.6 in. x 8.7 in. (24.4 cm x 21.0 cm)
• m-ATX Form Factor



Mounting

• 9 mounting holes

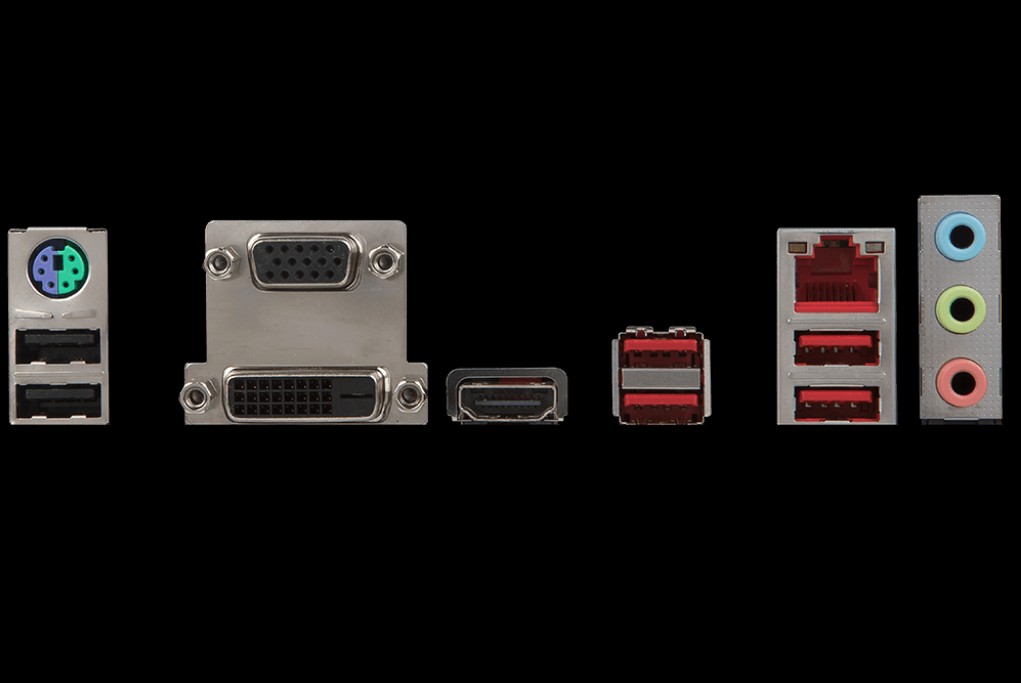

 back IO
  1. PS/2 GAMING Device Port
  2. VGA
  3. Gigabit LAN Port
  4. Premium Audio Connectors
  5. USB 2.0 Ports
  6. DVI-D
  7. HDMI
  8. USB 3.1 Gen1 Ports
  9. USB 3.1 Gen1 Ports
