Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

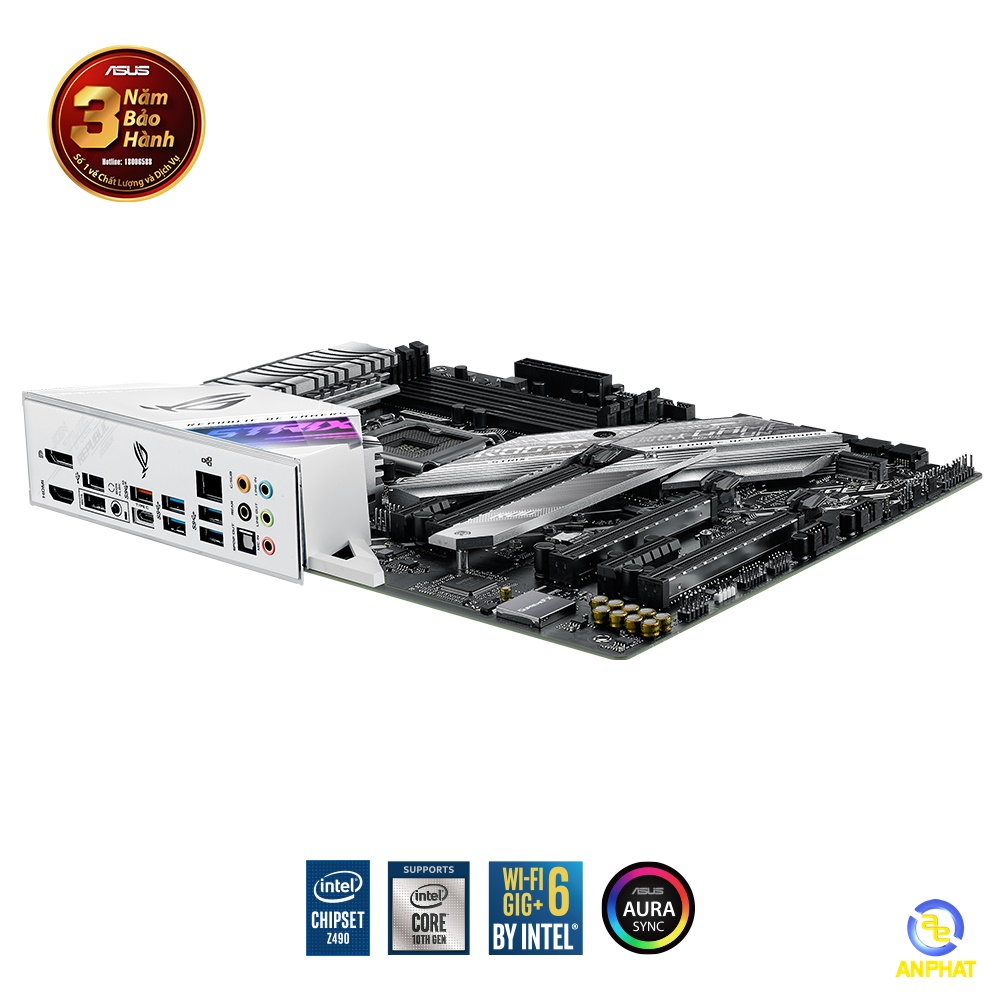

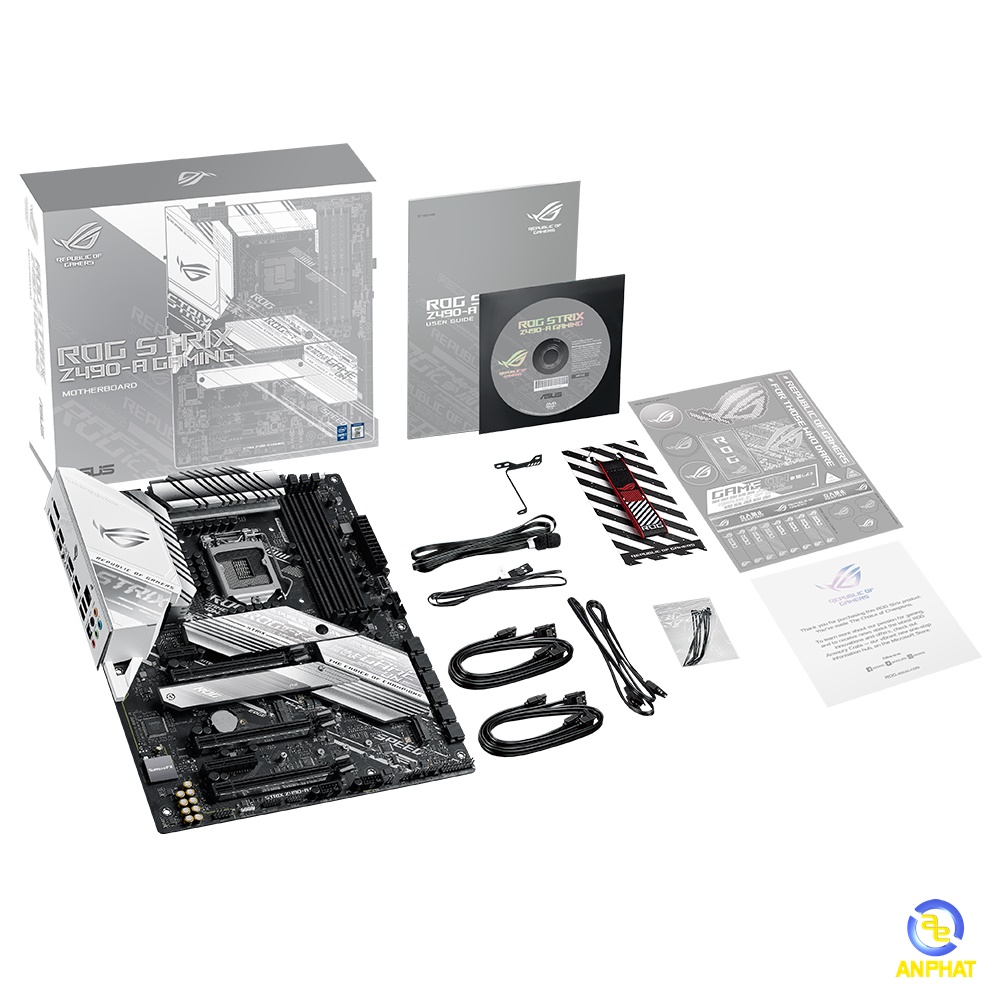

ROG Strix Z490-A Gaming LGA1200

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)
/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 10th Gen Processors
3 x PCIe 3.0 x16 (x16 or x8+x4+x4)
Intel® Z490 Chipset
1 x PCIe 3.0 x4 (max at x2 mode)
1 x PCIe 3.0 x1

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)

Cổng kết nối (Internal)

1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x CPU_OV jumper
1 x VRM_HS_FAN Header

Cổng kết nối (Back Panel)

1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A + USB Type-C^TM)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack^™)
1 x Optical S/PDIF out
1 x USB BIOS FlashBack^™ Button(s)
5 x Gold-plated audio jacks

LAN / Wireless

Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
