Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

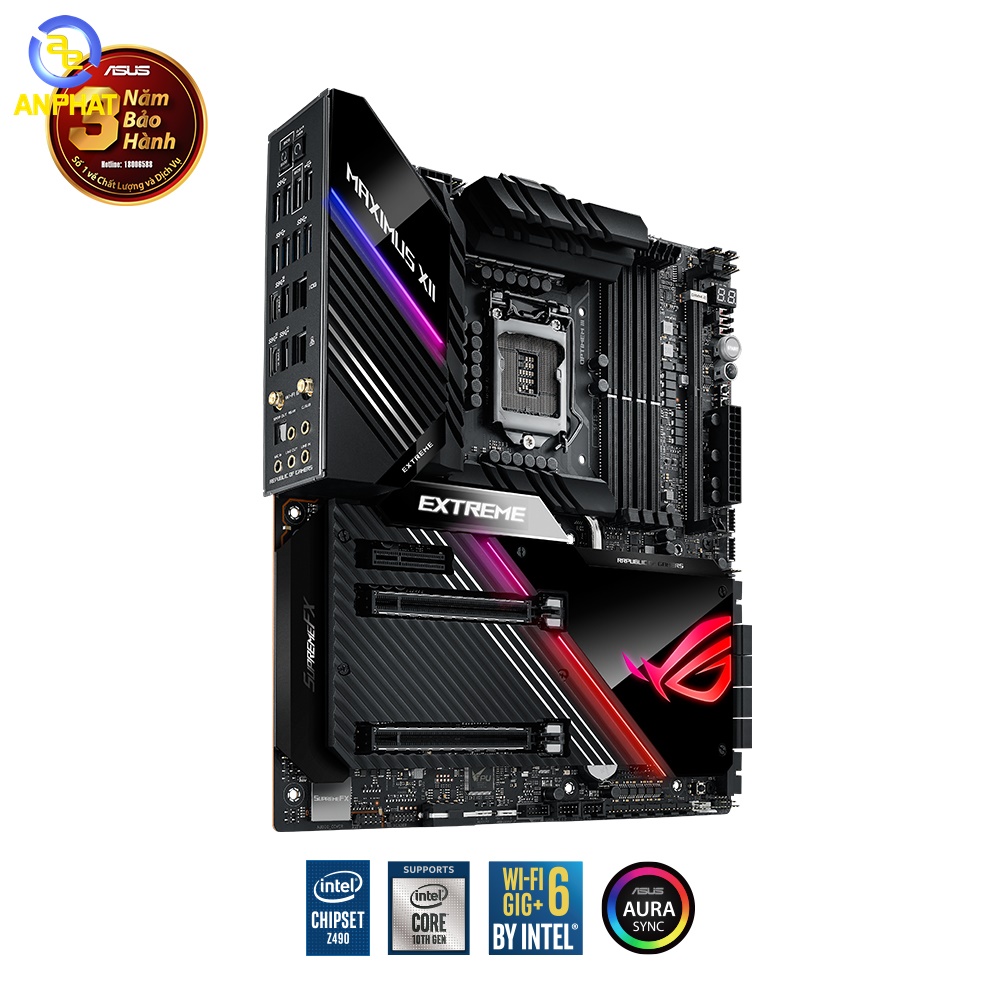

ROG MAXIMUS XII EXTREME Z490 LGA1200

CPU hỗ trợ

Intel

Chipset

Z490

RAM hỗ trợ

4 x DIMM, Max. 128GB, DDR4
4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)
/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)
/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Khe cắm mở rộng

Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel® Z490 Chipset
1 x PCIe 3.0 x4 *¹

Ổ cứng hỗ trợ

Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
Intel® 10th Gen Processors :
1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*²
Intel® Z490 Chipset :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*³
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
8 x SATA 6Gb/s port(s)

Cổng kết nối (Internal)

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x W_PUMP+ connector
1 x WB_SENSOR
8 x Radiator Fan Headers
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Node Connector(s)
1 x AAFP connector
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
8 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
1 x Slow Mode switch(es)
8 x ProbeIt Measurement Points
1 x Thermal sensor connector(s)
1 x BIOS Switch button(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
2 x USB 3.2 Gen 2 front panel connector
1 x Speaker connector
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
2 x RSVD Switch
1 x Start button
1 x FlexKey button

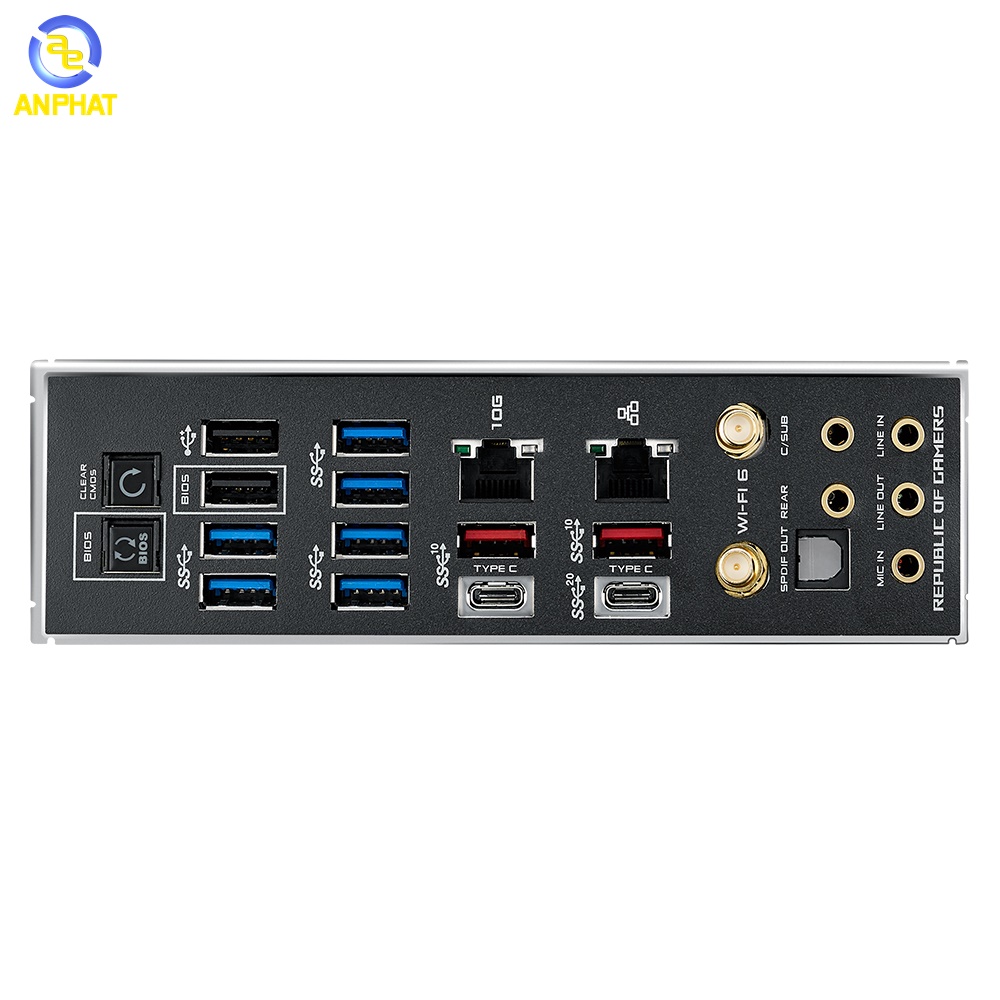

Cổng kết nối (Back Panel)

1 x LAN (2.5G) port(s)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C^®)
3 x USB 3.2 Gen 2
6 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack^™ Button(s)
1 x ASUS Wi-Fi Module
5 x LED-illuminated audio jacks
1 x Aquantia AQC-107 10G LAN port

LAN / Wireless

Intel® I225-V 2.5Gb Ethernet
Marvell® AQtion AQC107 10Gb Ethernet
ASUS LANGuard

Kích cỡ

Extended ATX Form Factor
12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )
