Sản phẩm

Bo mạch chủ

Tên Hãng

Asrock

Model

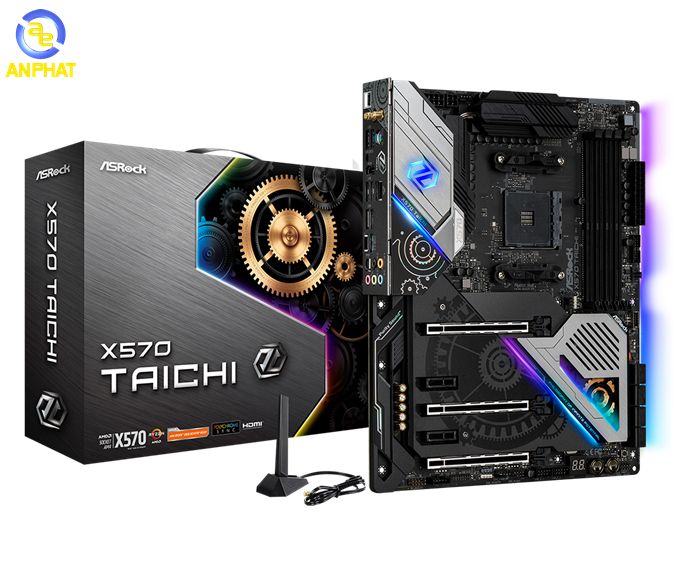

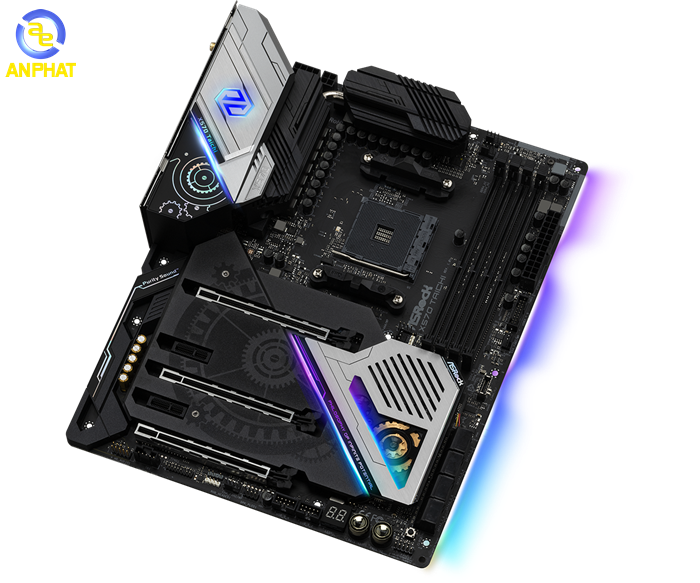

X570 Taichi

CPU hỗ trợ

AMD

Chipset

X570

RAM hỗ trợ

4 x DDR4 memory slots, support up to 128GB

Khe cắm mở rộng

3 x PCI Express 4.0 x16 Slots, 2 x PCI Express 4.0 x1 Slots

Ổ cứng hỗ trợ

8 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal)

1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x AMD Fan LED Header*
1 x RGB LED Header**
1 x Addressable LED Header***
1 x CPU Fan Connector (4-pin)****
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15μ Gold Audio Connector)
1 x AMD LED Fan USB Header
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ AIC Card only)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Clear CMOS Button

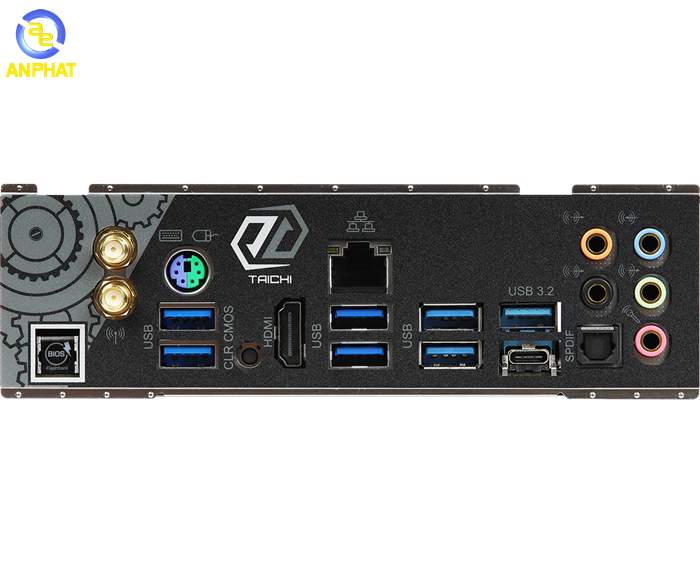

Cổng kết nối (Back Panel)

2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*

 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
1 x BIOS Flashback Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

LAN / Wireless

Gigabit LAN 10/100/1000 Mb/s, Supports IEEE 802.11a/b/g/n/ax

Kích cỡ

ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
