THÔNG SỐ KỸ THUẬT

TÍNH NĂNG NỔI BẬT

- Hỗ trợ CPU AMD AM4 Socket Ryzen Series (Summit Ridge, Raven Ridge và Pinnacle Ridge)

- Hỗ trợ DDR4 3466+ (OC)

- 2 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1

- Quad SLI của NVIDIA®, AMD Quad CrossFireX ™

- Âm thanh HD 7.1 CH (Realtek ALC1220 Audio Codec), Hỗ trợ Tín hiệu âm thanh 4 và DTS Kết nối

- 8 SATA3, 1 Ultra M2 (PCIe Gen3 x4 và SATA3), 1 M.2 (PCIe Gen2 x4 và SATA3)

- 3 USB 3.1 Gen2 (Loại phía sau A + C, Loại Front C), 10 USB 3.1 Gen1 (4 Mặt trước, 6 Bên sau)

- Intel® Gigabit LAN, Intel® 802.11ac + BT 4.2

- ASRock Polychrome RGB

THÔNG SỐ CHI TIẾT

Sản phẩm	Bo mạch chủ
Tên Hãng	Asrock
Model	X470 Taichi
CPU hỗ trợ	AMD
Chipset	X470
RAM hỗ trợ	4 x DDR4 DIMM Slots support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered
Khe cắm mở rộng	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))* - 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode) - 2 x PCI Express 2.0 x1 Slots (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™* - Supports NVIDIA^® Quad SLI™ and SLI™*** - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
Ổ cứng hỗ trợ	- 6 x SATA3 6.0 Gb/s - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express
Cổng kết nối (Internal)	- 1 x Power LED and Speaker Header - 1 x AMD Fan LED Header* - 1 x RGB LED Header - 1 x Addressable LED Header* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.1 Gen2 Header (ASMedia ASM3142) - 1 x Dr. Debug with LED
Cổng kết nối (Back Panel)	- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 6 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Lan/ Wireless	- Intel^® 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II
Kích cỡ	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB
Hỗ trợ đa card màn hình	- Supports AMD Quad CrossFireX™ and CrossFireX™ - Supports NVIDIA^® Quad SLI™ and SLI™

XEM THÊM THÔNG SỐ

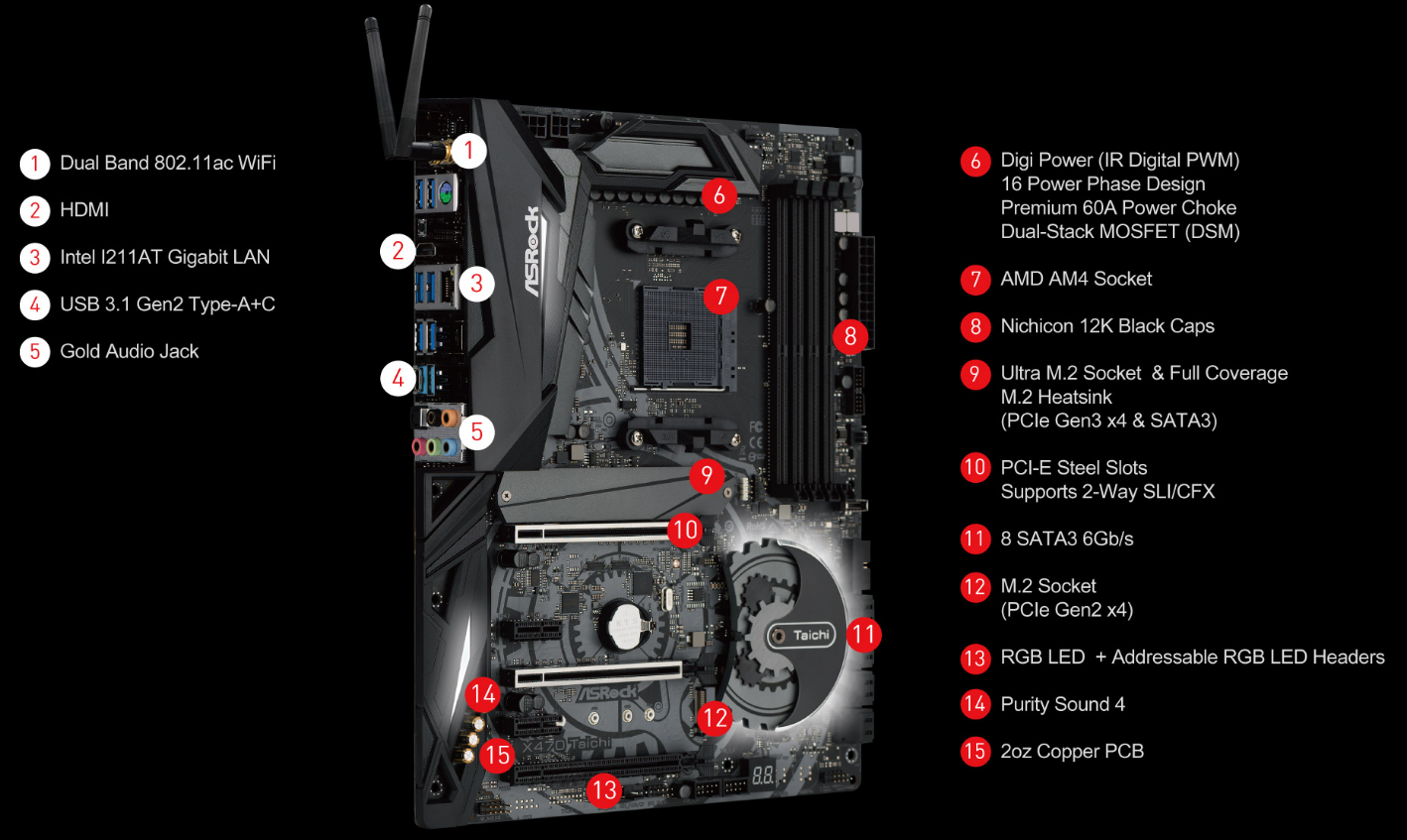

Mainboard Asrock X470 Taichi (WIFI)

Mã SP: MAAR0067 0 đánh giá Lượt xem: 7.606 So sánh

Asrock X470 Taichi - Socket: AMD AM4 Ryzen (Summit Ridge, Raven Ridge và Pinnacle Ridge) - Kích thước: ATX - Khe cắm RAM: 4 khe (Tối đa 64GB DDR4)
