Thông số kỹ thuật

THÔNG SỐ KỸ THUẬT

Gaming Armor

Power
- Hi-Density Power Connectors (24 pin for Motherboard, 8+4 pin for Motherboard, 6 pin for PCIe Slot)
- IR Dr. MOS
Memory
- 15μ Gold Contact in DIMM Slots
VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
Internet
- AQUANTIA^® 10G LAN
- Intel^® LAN

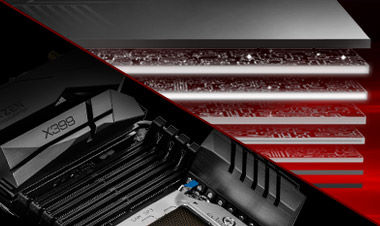

Cooling
- XXL Aluminum Alloy Heatsink
- 8 Layer PCB
- 2oz Copper PCB
- Heat Pipe Design
Audio
- Creative Sound Blaster™ Cinema 3
Unique Feature

ASRock USB 3.1
- ASRock USB 3.1 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- IR3555M Dr. MOS 60A
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
AQUANTIA^® 10G LAN
Intel^® 802.11ac WiFi

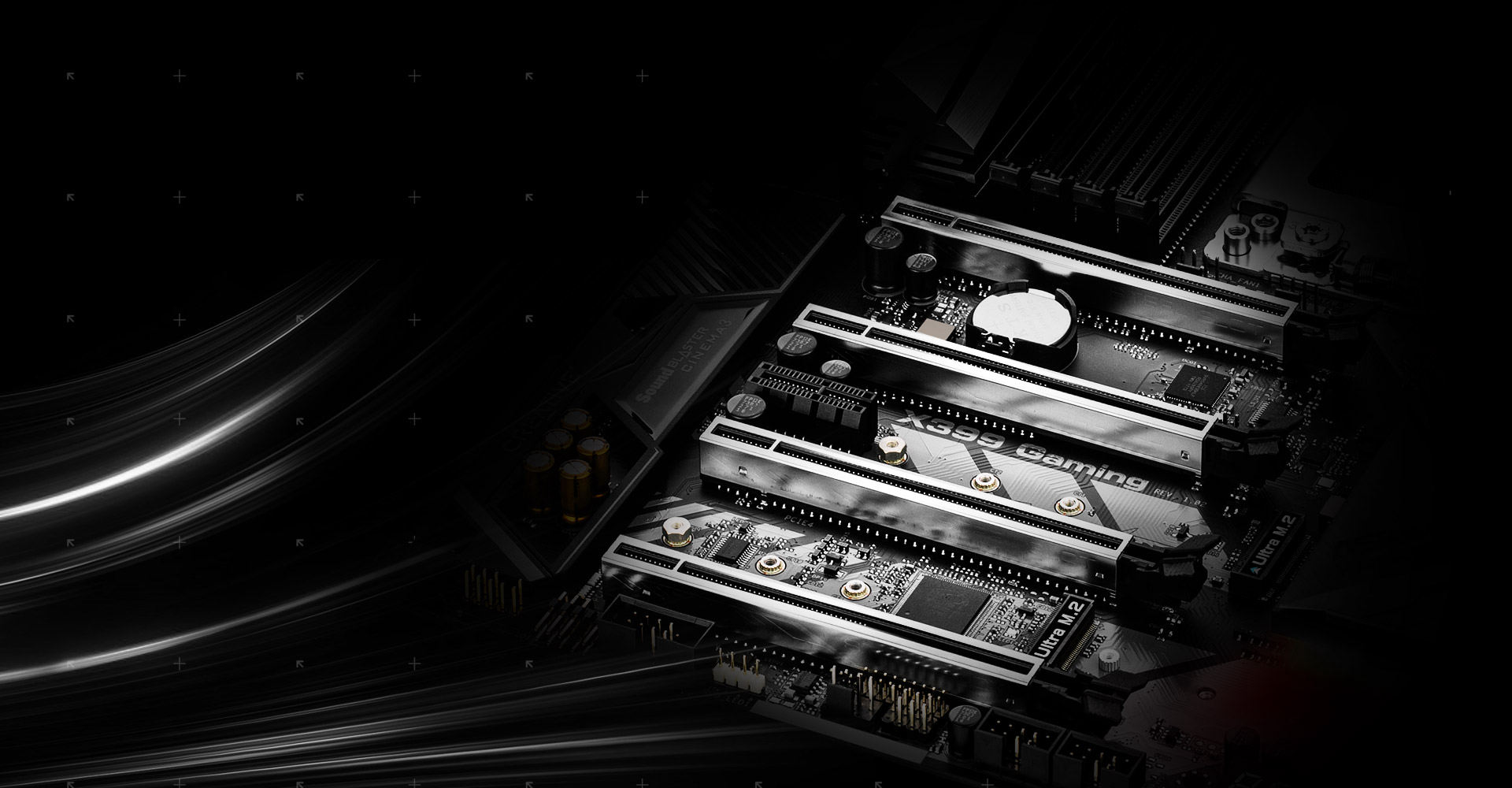

ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU

- Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
- IR Digital PWM
- 11 Power Phase design
- Supports ASRock Hyper BCLK Engine III
Chipset

- AMD X399
Memory

- Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4 3600+(OC)/3200(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory
- Max. capacity of system memory: 128GB*
- 15μ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
Graphics

- n/a
Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- TI^® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Line Out port
- Individual PCB Layers for R/L Audio Channel
- RGB LED
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports Creative Sound Blaster™ Cinema 3
LAN

1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA^® AQC107):
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports PXE
2 x Intel^® Gigabit LAN 10/100/1000 Mb/s (2 x Intel^® I211AT):
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

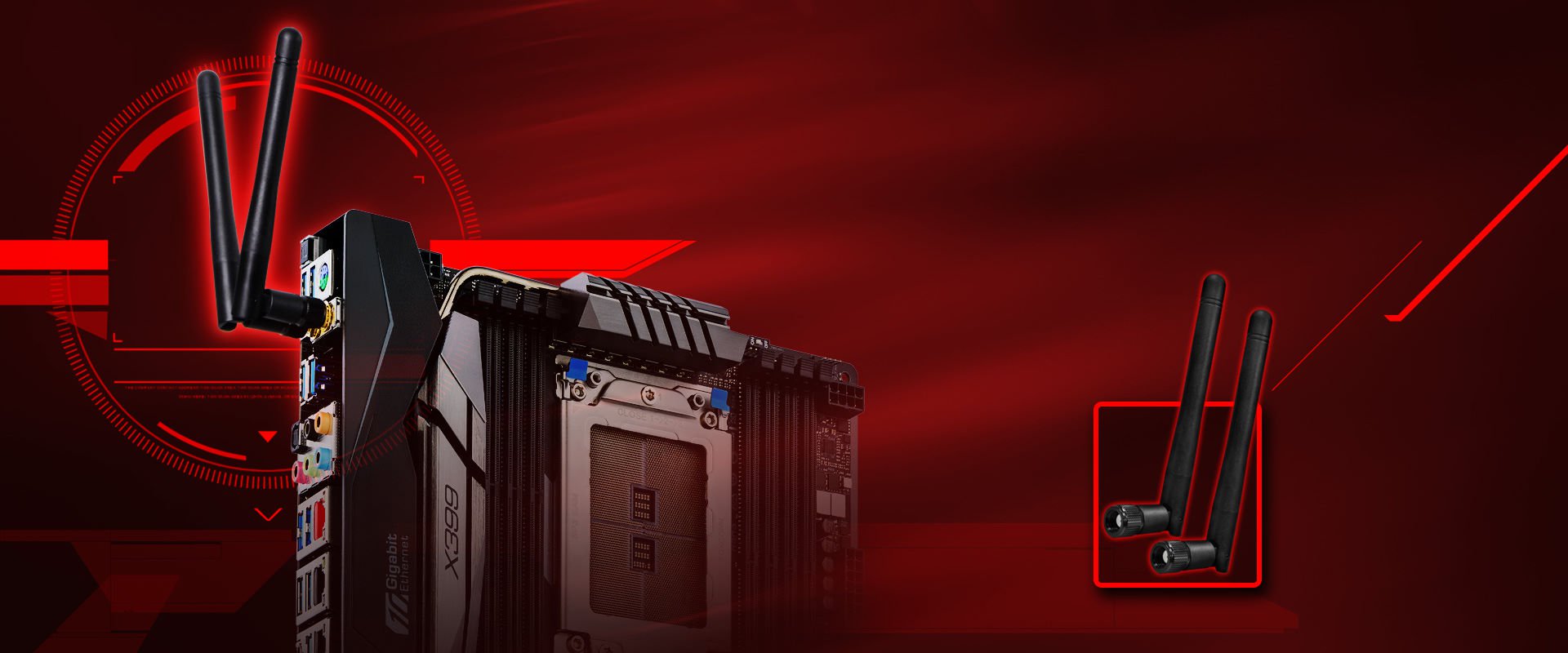

Wireless LAN

- Intel^® 802.11ac WiFi Module (Free Bundle)
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots

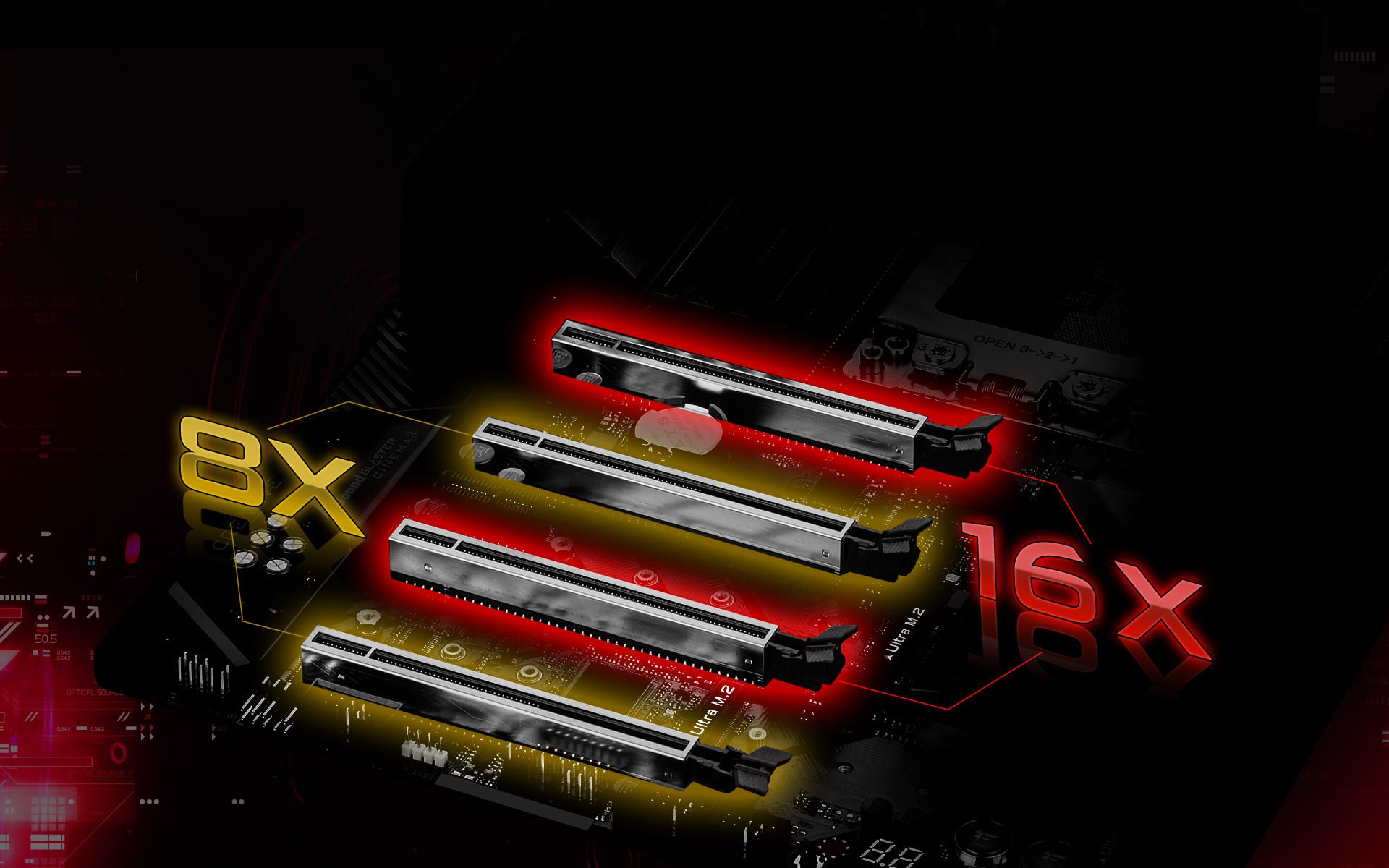

- 4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5))*
- 1 x PCI Express 2.0 x1 Slot
- Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA^® Quad SLI™, 4-Way SLI™, 3-Way SLI™ and SLI™
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)

*Supports NVMe SSD as boot disks
Storage

- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

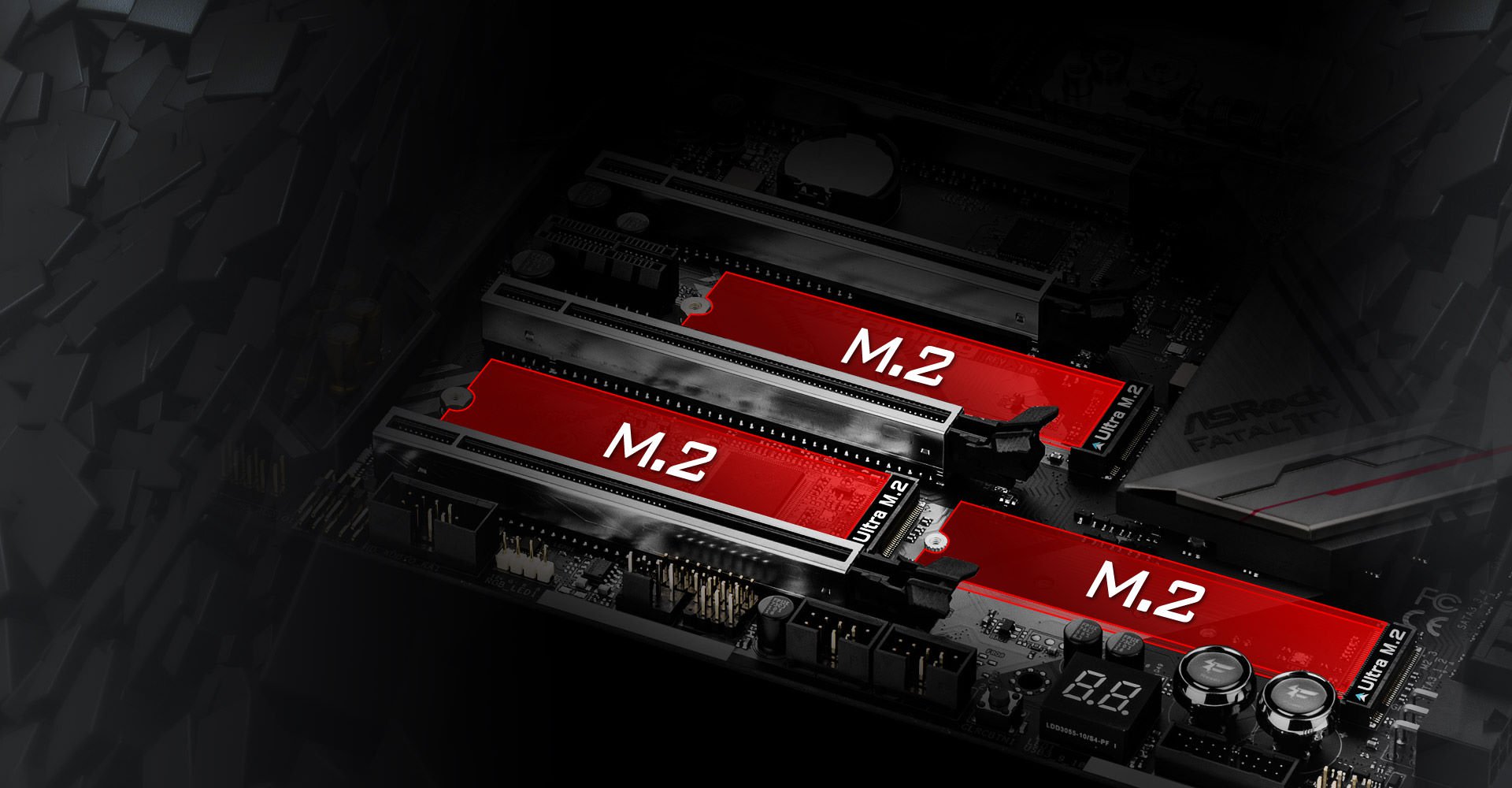

- 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
- 1 x U.2 Connector**

*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

**If U.2 Connector is plugged, M2_1 will be disabled
Connector

- 1 x COM Port Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
- 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)*****
- 1 x Right Angle Front Panel Audio Connector*****
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection)
- 1 x Clear CMOS Switch
- 1 x Dr. Debug with LED
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x CPU Xtreme OC Switch

*Each header supports up to 12V/3A, 36W LED Strip

**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

******Connect the audio device to either one of the audio connectors.
Rear Panel I/O

- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 8 x USB 3.0 Ports (Supports ESD Protection)
- 3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Switch
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*Ultra USB Power is supported on USB3_6 port.
ACPI wake-up function is not supported on USB3_6 port.
1 x Fatal1ty Mouse Port (USB 3.0) is included
Software and UEFI

Software
- ASRock F-Stream
- ASRock RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN*
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x ASRock 3-Way SLI™ Bridge Card
- 1 x ASRock 4-Way SLI-S111 Bridge Card
- 1 x ASRock SLI_HB_Bridge_3S Card
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 3 x Screws for M.2 Sockets
Hardware Monitor

- Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
- 2oz Copper PCB
OS

- Microsoft^® Windows^® 10 64-bit*

* Windows^® 10 RS2 is supported
Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

XEM THÊM THÔNG SỐ

Mainboard Asrock Fatal1ty X399 Professional Gaming

Name: Mainboard Asrock Fatal1ty X399 Professional Gaming
Brand: Asrock
SKU: MAAR0048
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAAR0048 0 đánh giá Lượt xem: 3.964 So sánh

Mainboard Asrock Fatal1ty X399 Professional Gaming ASRock Super Alloy Gaming Armor: Power / Memory / VGA / Internet / Cooling / Audio Supports AMD TR4 Socket Ryzen Threadripper Series CPUs

Xem thêm >

Giá khuyến mại:	Liên hệ [Giá đã có VAT]
	🎁Từ 1/6 đến 30/6/2025 quét QR Code thanh toán giảm ngay tới 1.000.000đ Xem chi tiết

Bảo hành: 36 tháng

🎁 ĐẶT HÀNG TRƯỚC, RƯỚC QUÀ TO

Có 0 người đã đăng ký nhận thông tin. Xem Danh sách

Chấp nhận thanh toán:

Mua hàng Online toàn quốc:
(Hotline: 1900.0323 - Phím 1 hoặc 0913.367.005)

Hiện đang có tại showroom:

* Showroom miền Bắc:

* Showroom miền Nam:

Trợ giúp

MUA HÀNG NHANH CHÓNG, TIỆN LỢI

- Mua online - Giao hàng nhanh chóng
- Ship hàng toàn quốc
- Nhận hàng và thanh toán tại nhà ( ship COD)

➤ KHUYẾN MẠI CỰC HOT ĐỪNG BỎ LỠ !!!

MÔ TẢ SẢN PHẨM

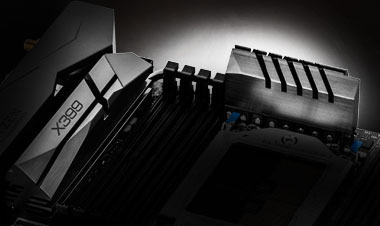

XXL Aluminum Alloy Heatsink

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

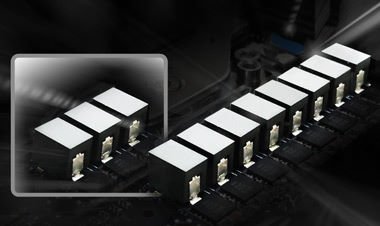

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Premium Memory Alloy Choke

Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Nichicon 12K Black Caps

Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

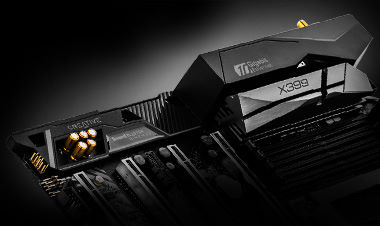

I/O Armor

A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Creative Sound Blaster™ Cinema 3

Sound Blaster™ Cinema 3 is the latest software that is designed with SBX Pro Studio to deliver a holistic audio experience. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

120dB SNR DAC

Gold Audio connector

TI^® NE5532 Premium Headset Amplifier

Individual PCB Layers for R/L Audio Channel

Impedance Sensing on Front Out port

PCB Isolate Shielding

Pure Power-In

Nichicon Fine Gold Series Audio Caps

Gold Audio Jacks

F-Stream

Modify Your Weapon

Key Master

Consists of two major features, Sniper Key and Macro Key. It enhances your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay.

F-Stream

F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities.

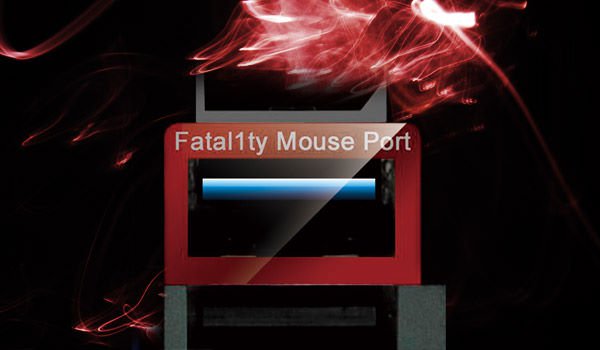

Fatal1ty Mouse Port

After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
