CPU

• Supports AMD^® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
* This function will be supported depend on the CPU.

Chipset

• AMD^® B350 Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz *
• Dual channel memory architecture
* 7th Gen A-series/ Athlon ™ processors support up to 2400 MHz. Please refer www.msi.com for more information on compatible memory.

Slots

• 1 x PCIe 3.0 x16 slot (PCI_E2)
- Supports x 16 speed with RYZEN Series Processors
- Supports x 8 speed with 7th Gen A-series/ Athlon™ processors
• 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)*
• 2 x PCIe 2.0 x1 slots
• 2 x PCI slots
* PCI_E4 slot will become PCIe 2.0 x2 mode, when installing device in any PCIe x1 slot.

Onboard Graphics

• 1 x VGA port, supports a maximum resolution of 2048x1280@60HZ (RB)*
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz*
* Only support when using a 7th Gen A-series/ Athlon™ processor
* Maximum shared memory of 2048 MB

Multi-GPU

• Supports 2-Way AMDv CrossFire™ Technology

Storage

• AMD^® B350 Chipset
• 4 x SATA 6Gb/s ports*
- Support RAID 0, RAID 1 and RAID 10
• 1 x M.2 port (Key M)
- Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices

USB

• AMD^® B350 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

• AMD^® RYZEN series processors/ 7th Gen A-series/ Athlon™ processors
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A ports and 1 Type-C port on the back panel)

Audio

• Realtek^® ALC892 Codec
- 7.1-Channel High Definition Audio

LAN

• 1 x Realtek^® 8111H Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x 4-pin RGB LED strip connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

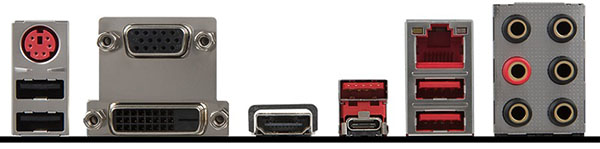

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI™ port
- 3 x USB 3.1 Gen1 Type-A ports
- 1 x USB 3.1 Gen1 Type-C port
- 1 x LAN (RJ45) port
- 6 x OFC audio jacks

Dimension

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

Mounting

• 9 mounting holes

PS/2 GAMING Device Port
VGA Port
USB 3.1 Gen1 Ports
Realtek® Gigabit LAN Port
HD Audio Connectors
USB 2.0 Port
DVI-D Port
HDMI
USB 3.1 Gen1 Type-C Ports
VR Ready USB 3.1 Gen1 Ports

XEM THÊM THÔNG SỐ

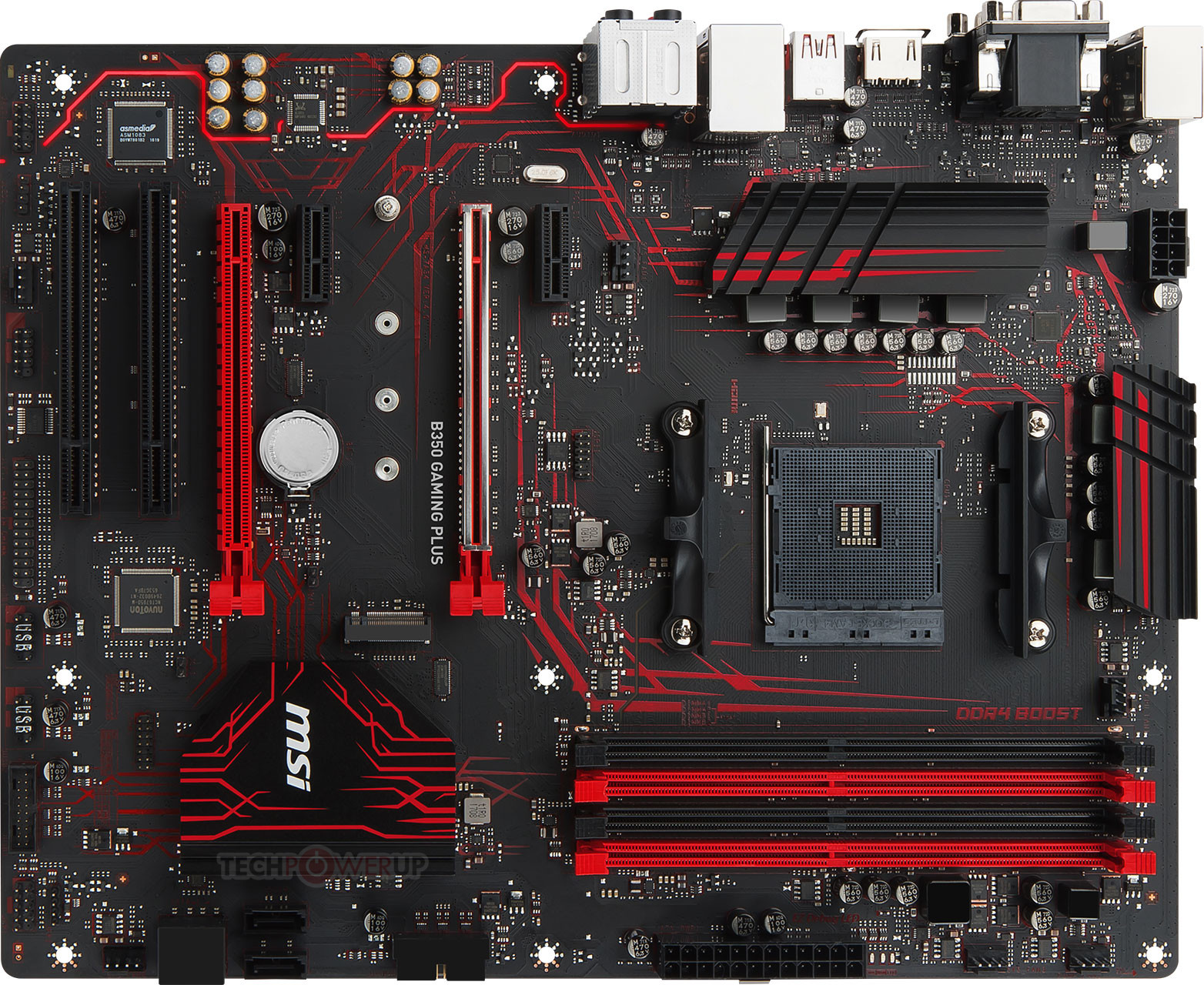

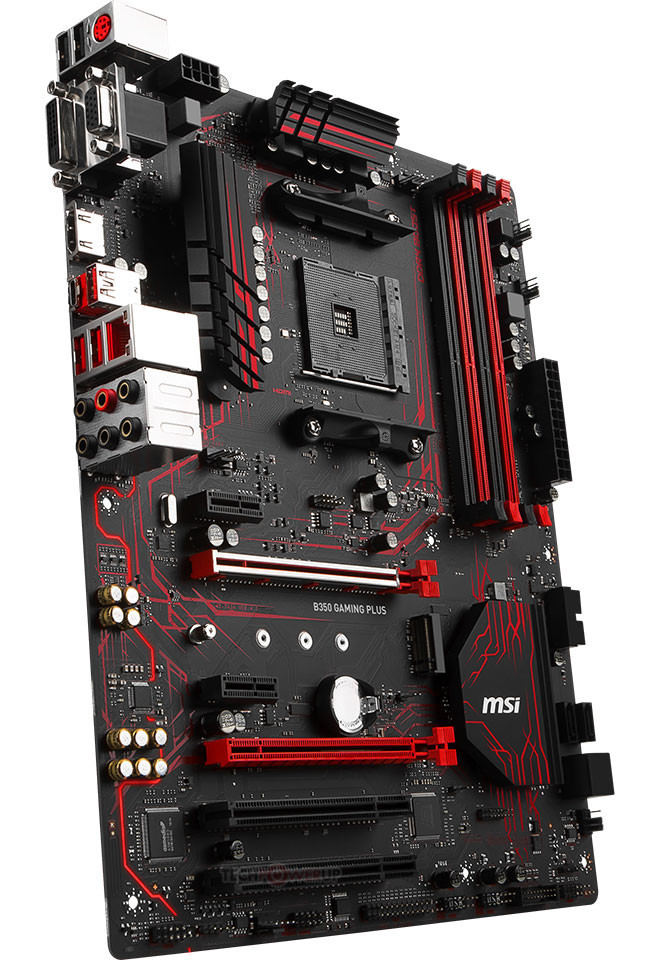

Mainboard MSI B350 GAMING PLUS

Name: Mainboard MSI B350 GAMING PLUS
Brand: MSI
SKU: MAMS0113
Price: 1 VND
Availability: InStock
Rating: 5 (5 reviews)

Mã SP: MAMS0113 0 đánh giá Lượt xem: 10.479 So sánh

Mainboard MSI B350 GAMING PLUS Supports AMD® RYZEN Series processors and 7th Gen A-series / AthlonTM Processors for socket AM4 Supports DDR4-3200+(OC) Memory DDR4 Boost: Give your DDR4 memory a performance boost
